Current Location: Home Products Stator Assembly Line

BUSBAR structural stator assembly line

The BUSBAR structural stator assembly line is a line with a high degree of automation and guaranteed product quality. It mainly completes the assembly and splicing of the BUSBAR structural stator. It adopts an industrial control acquisition data system to realize the traceability of product production process information. The process flow of this wire : stator core loading → winding, paint removing → piecing together a circle→ laser marking → comprehensive performance test + material collection and other processes.

Ask for A Quick Quote

Inquire Now

Product Details

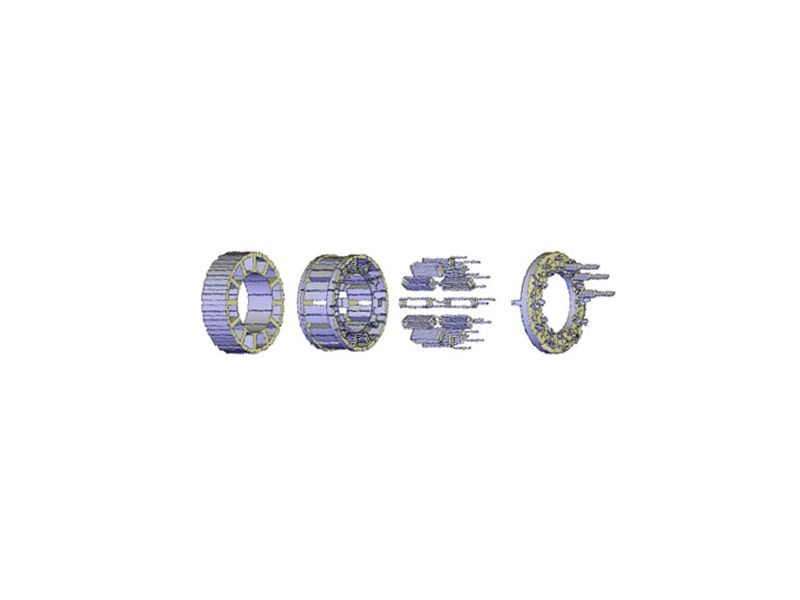

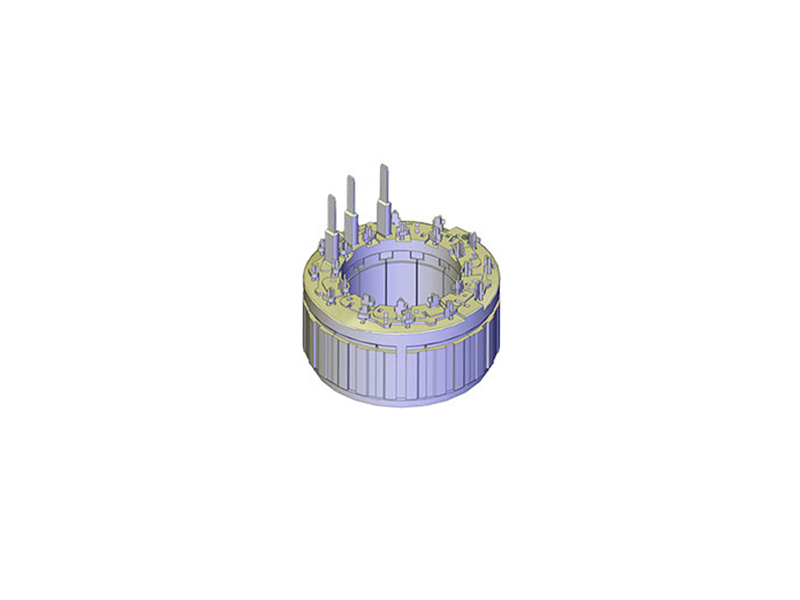

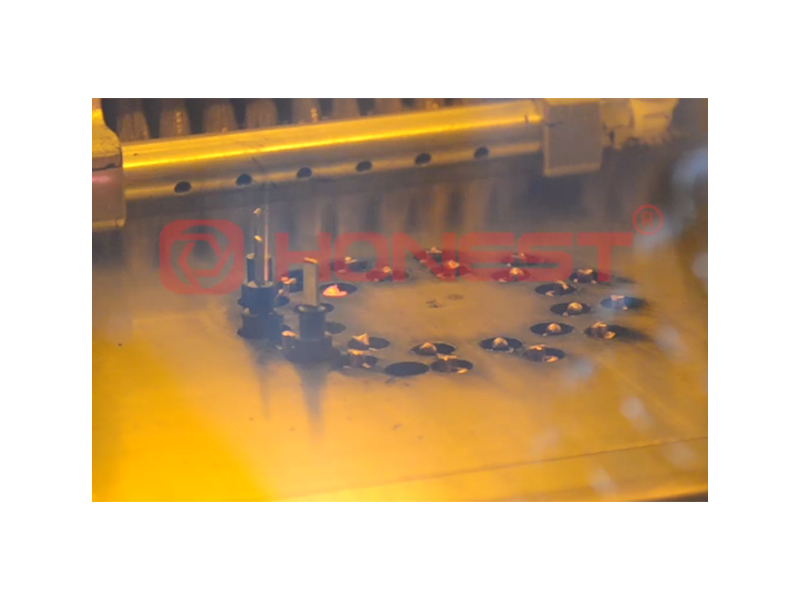

Split Graph Finished Product Drawing Local Graph

Advantages

01

Equipped with high-precision sensors and visual inspection system.
02

The equipment is ergonomically designed and easy to operate.
03

Make full use of technological methods such as material reverse inspection and missing packaging identification.
04

Configure special safety gratings, safety door locks, etc. for personal safety protection
05

Achieve traceability of product production process information.
06

All collected data are transmitted back to MES and have data management functions.

Equipment Parameters

Production efficiency
25 seconds/PCS (CT)
Yield rate
≥99%
Utilization rate
≥90%
Voltage
AC220V/AC380V 50HZ
Air pressure
0.4~0.7Mpa
Power
≈57KW
Control method
HMI, PLC
Size
13000(L)*5300(W)*2200(H)mm
Application areas
Automotive oil pump motor
