Condenser Fan Motor Assembly Line

The condenser fan motor production line, designed for the automotive industry, is planned and engineered according to principles of high quality, high automation, high flexibility, lean manufacturing, and ergonomic standards.



The line is divided into four main sections: stator section, rotor section, motor assembly section, and fan assembly section. The main conveyor system combines a conveyor line with tooling pallets and is arranged in a straight or U-shaped counterclockwise layout to complete the assembly and testing processes of condenser fan motors.

Inquire Now
Product Details

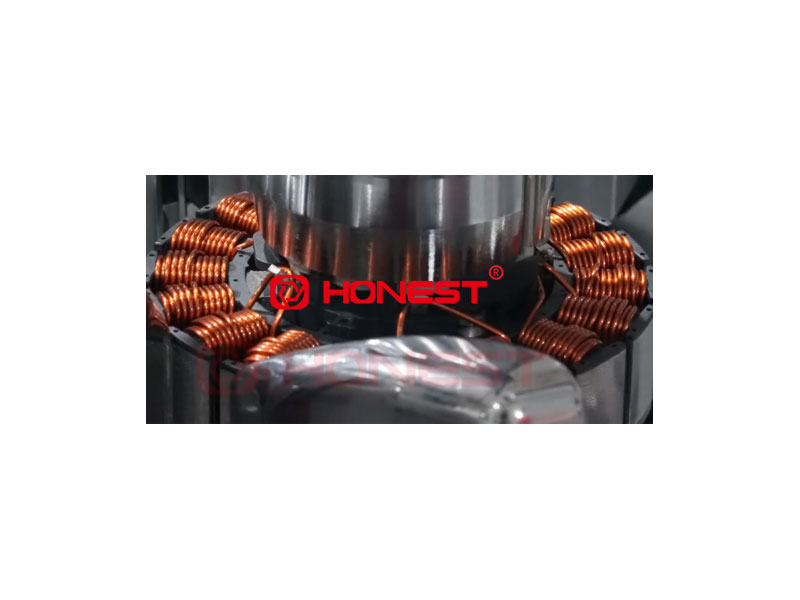

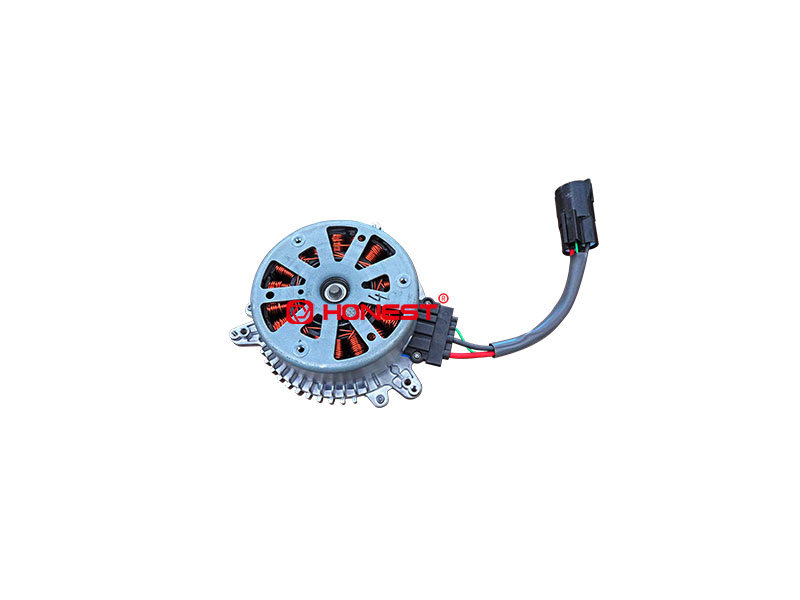

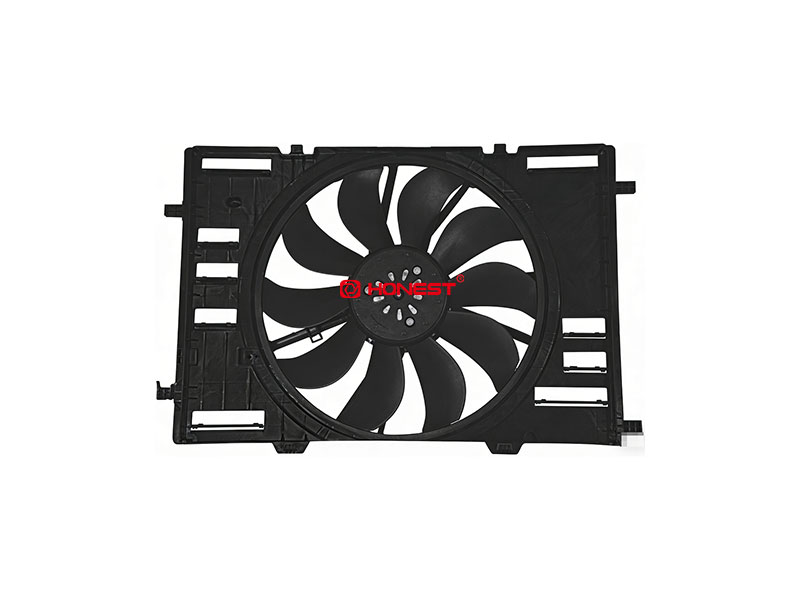

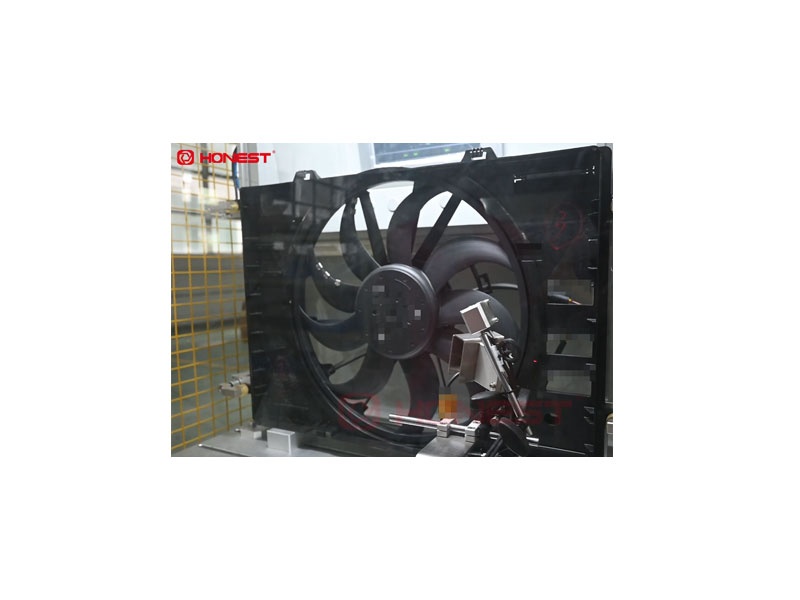

Fan Motor Diagram Finished Product Drawing-3 Local Graph-3
Advantages
Equipment Parameters
  • Production efficiency
  • 19S/PCS
  • Quality rate
  • ≥98%
  • Utilization rate
  • ≥90%
  • Voltage AC
  • 220V/380V 50Hz
  • Air pressure
  • 0.45-0.65Mpa
  • Power
  • 580kw
  • Control method
  • PLC+HMI
  • Dimensions
  • 88000 (L) * 1000 (W) * 2800 (H) mm
  • Application field
  • Automobile condenser fan motor
