Brushless motor have become an important part of modern industry, consumer electronics, automobiles and other fields due to their high efficiency, durability and low maintenance. Brushless motor winding machines are the core equipment for manufacturing and optimizing these motors. How to choose the best brushless motor winding machine is an important issue that every manufacturer seeking to improve production efficiency and product quality must face.
We will explore in depth the key features, main advantages, and performance of brushless motor winding machine in different applications, and provide you with a practical guide to choosing a winding machine. Through detailed analysis, we hope to help you make an informed decision to meet specific production needs and technical requirements.
1. Introduction to Brushless Motor
A brushless motor is a motor that uses an electronic controller to replace the mechanical commutator in a traditional brushed motor. Brushless motors have many advantages: they run quieter, are more efficient, have a longer life, and excel in many high-end applications. Because there is no friction between the brushes and the commutator, brushless motors require less maintenance and can run at higher speeds. They are widely used in electric vehicles, drones, and industrial automation equipment.
The performance of brushless motors depends largely on the quality and accuracy of the winding. This makes brushless motor winding machines a key position in motor manufacturing. Winding machines are responsible for accurately winding the enameled wire onto the stator of the motor, a process that is critical to the efficiency, output power and life of the motor. Therefore, choosing an efficient winding machine is crucial for any company seeking to optimize its production process.
2. Types and working principles of bldc winding machine
Brushless motor winding machines are mainly divided into three types: manual, semi-automatic and fully automatic.
Manual winding machine: The operator needs to manually control the winding process, which is suitable for small batch production or laboratory applications. Its advantage is high flexibility, but its efficiency is low due to its strong dependence on manual operation.
Semi-automatic winding machine: It combines the advantages of manual and automatic operation and is suitable for small and medium batch production. The operator only needs to partially control the winding process, and the machine does the rest automatically. This machine improves production efficiency while maintaining a certain degree of operational flexibility.
Fully automatic winding machine: It can fully automate the winding process, from wire feeding to coil forming, without manual intervention. Fully automatic winding machine is suitable for large-scale production, with the highest production efficiency and the most consistent winding quality.
Regardless of the type of winding machine, the working principle is basically the same: first, the enameled wire is drawn from the spool, the tension controller ensures the wire tension is stable, and then the wire is wound into the slots of the stator core according to the predetermined winding pattern. Advanced winding machines are equipped with highly accurate control systems that can ensure the precise position and tension of each turn of the wire, maximizing the performance of the motor.
3. Key features for selecting a brushless motor winding machine
When choosing a brushless motor winding machine, you need to consider several key features to ensure that it can meet specific production needs and technical requirements. The following are a few areas that require special attention:
Modern winding machines are usually equipped with programmable logic controllers (PLC) or computer numerical control (CNC) systems. Through these control systems, operators can accurately set the winding mode, speed, tension and other parameters. The programmability of these parameters allows the machine to easily adapt to the production of motors of different types and specifications. In addition, the friendly operation interface can greatly reduce the difficulty of operation and improve production efficiency.
Winding speed and accuracy are key factors affecting production efficiency and product quality. High-end winding machines are usually able to complete the winding process at extremely high speeds while maintaining high-precision winding quality. This is especially important for companies that need to produce in large quantities and have high requirements for product consistency.
Wire tension control directly affects the quality of winding and the performance of the motor. If the tension is unstable, it may cause the coil to be loose or unevenly tight, which in turn affects the efficiency and service life of the motor. Choosing a winding machine with an advanced tension control system can ensure that each coil of wire is wound accurately, ensuring product consistency and high performance.
Different types of motors have different winding requirements, so the adaptability of the winding machine is crucial. Some high-end winding machines can adapt to a variety of motor stators of different specifications by replacing the fixture or adjusting the settings. This adaptability can help companies save time and cost when producing different products.
With the advancement of Industry 4.0, the level of automation and intelligence has become an important indicator to measure the advancement of winding machines. Modern winding machines can not only automatically complete the winding process, but also self-adjust and optimize by integrating AI and machine learning technology. Intelligent winding machines can monitor the production process in real time, identify and correct potential problems, thereby improving production efficiency and reducing scrap rates.
The safety of industrial equipment always comes first. Choosing a winding machine with good safety design and emergency stop function can effectively avoid operating accidents. In addition, the maintenance needs of the equipment are also one of the considerations. Equipment that is easy to maintain can reduce downtime and maintain production continuity.
4. The main advantages of using a bldc motor winding machine
Improve production efficiency
Fully automated winding machines can greatly improve production efficiency, especially in large-scale production. The machine can complete winding tasks at extremely high speed and consistency, significantly reducing the time and errors of manual operation.
Improve product quality
The winding machine's precise control system ensures that each coil is wound according to the set parameters, avoiding errors that may be caused by human operation. This high-precision winding helps improve the overall performance of the motor and extend its service lifespan.
Reduce production costs
Although the initial investment of high-end winding machines is high, their automation capabilities and efficient production can significantly reduce long-term production costs. Especially in large-scale production, the savings in labor costs and time costs are more obvious.
Support customized production
Many modern winding machines have flexible programmability and can be quickly adjusted according to different motor designs. This flexibility enables companies to respond to changes in market demand more efficiently and support customized production.
5. Application scenarios in different industries
Automotive Industry
In electric vehicle (EV) manufacturing, brushless motors are one of the core components of the drive system. High-performance winding machines can ensure that the motors have higher power density and efficiency, thereby improving the overall performance and endurance of electric vehicles.
Aerospace
In the aerospace field, the performance of motors is directly related to the safety and performance of aircraft. High-precision winding machines can produce motors that meet the strict standards of the aerospace industry, ensuring that they can still operate stably under extreme conditions.
Consumer Electronics
Brushless motors are widely used in consumer electronics products, such as high-end fans, drones, etc. The use of precision winding machines can improve the operating efficiency and durability of these devices and provide consumers with a better use experience.
Industrial Automation
In the field of industrial automation, brushless motors are used to drive various types of automation equipment. By using advanced winding machines, motors with superior performance and longer life can be produced, which helps the efficient operation of industrial automation.
6. Recommendations for choosing a brushless motor winding machine
Clarify production requirements
Before choosing a winding machine, you must first clarify your own production requirements, including production scale, motor type and specifications, etc. These factors will directly affect the choice of winding machine.
Investigate the leading brands on the market
There are many high-quality winding machine brands on the market, each with different advantages and technical features. Investigate the leading brands and models on the market and choose the most suitable equipment based on your needs.
Evaluate the cost-effectiveness of the equipment
Although price is an important consideration, cost-effectiveness is more critical. Choosing a winding machine that can meet production needs and provide long-term value is the best choice.
Pay attention to after-sales service
Good after-sales service can ensure the long-term stable operation of the equipment. When choosing a brushless winding machine, you should pay special attention to the after-sales support provided by the manufacturer, including technical training, maintenance services, etc.
As a key equipment in motor manufacturing, the selection of brushless motor winding machines directly affects production efficiency and product quality. By understanding the key features, advantages, and performance of winding machines in different application scenarios, companies can make wise choices to ensure that the equipment can meet their specific production needs and promote the development of the company. The selection process of a brushless motor winding machine should comprehensively consider multiple factors such as the machine's programmability, winding speed and accuracy, wire tension control system, adaptability, diversity, automation level, safety and maintenance requirements. By choosing a winding machine that meets the company's production requirements, you can greatly improve production efficiency, reduce labor costs, and ensure high product quality and consistency.

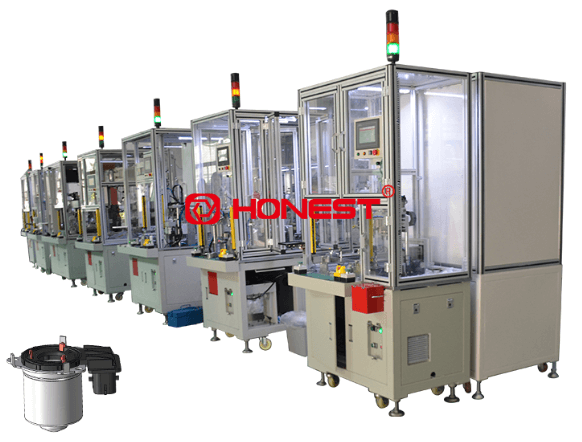

BLDC winding machine are mature products of HONEST Intelligent. We have provided more than 1,000 brushless motor winding machines to domestic and foreign customers, and they can be assembled into bldc motor production line. Welcome to consult and get free solutions and quotations!
