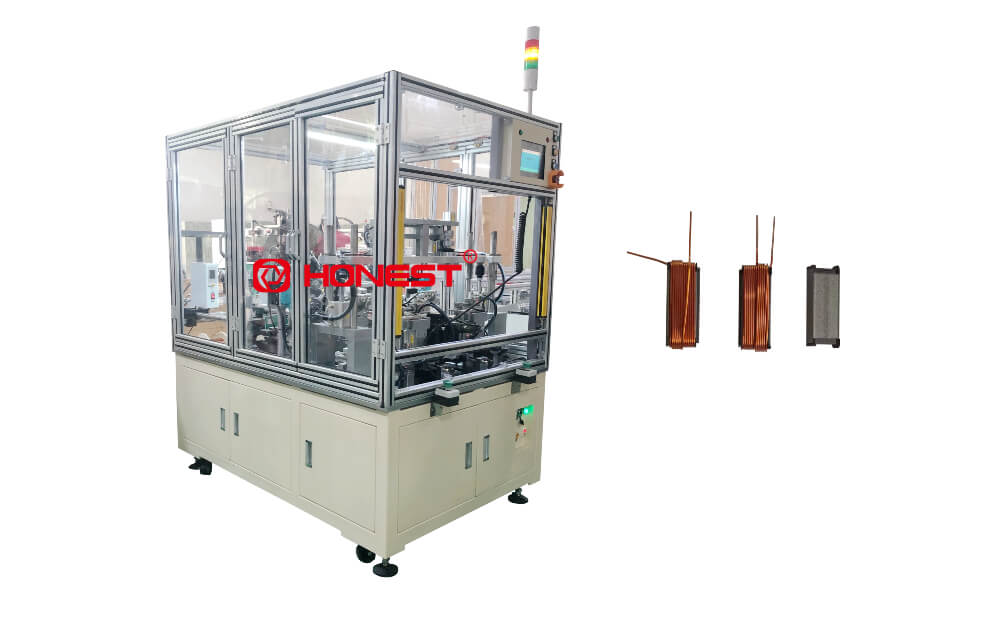

Flat Wire Coil Winding Machine

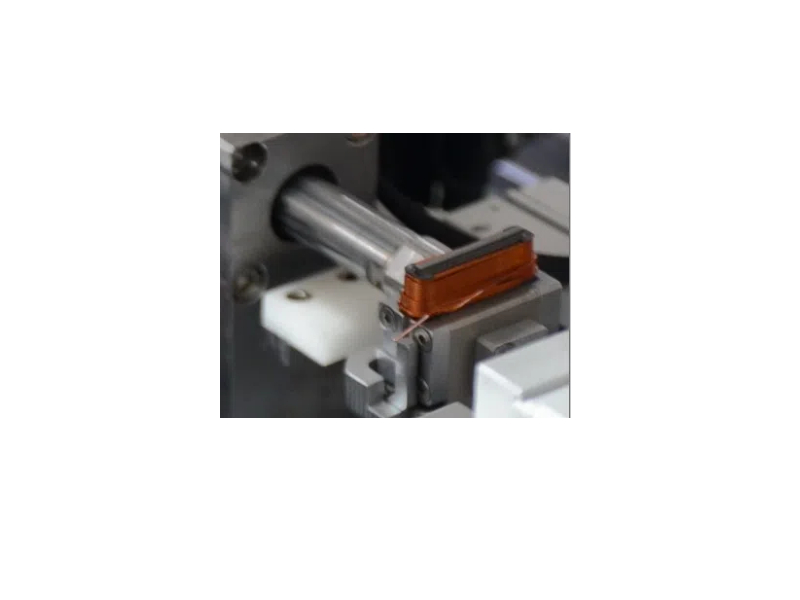

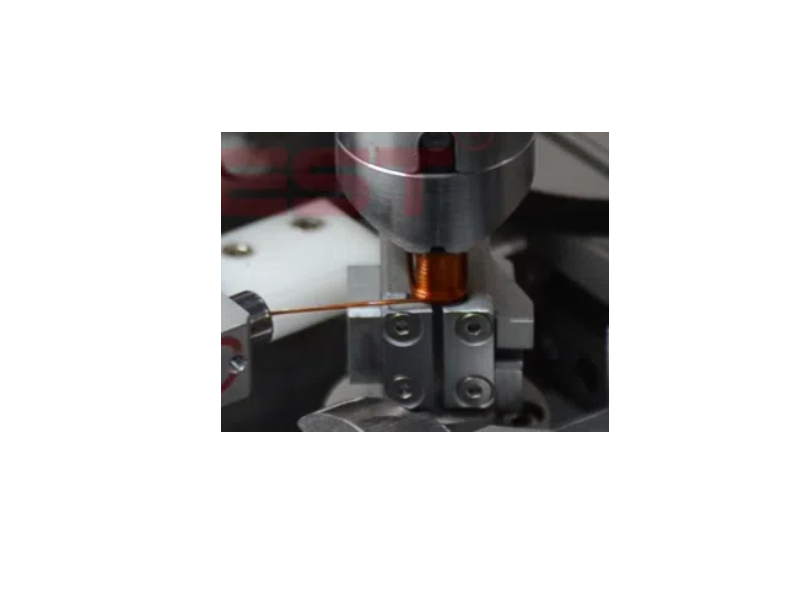

The flat wire coil winding machine from Honest Automation is designed for stator winding in automotive and electric motor applications, delivering both high efficiency and precision. With dual-station operation, X/Y/Z/V-axis motion control for accurate wire placement, servo-controlled tensioning with break detection, and automated wire cutting, shaping, and gluing with UV curing, it ensures consistent coil quality. Its modular, flexible design offers broad compatibility for various stator sizes, helping manufacturers boost productivity while reducing labor.

Inquire Now
Product Details
Local Graph Local Graph Local Graph
Advantages
Equipment Parameters
  • Applicable Models
  • Compatible with 3 products
  • Application field
  • Flat wire motor
  • Applicable Wire Diameter
  • 0.78 × 0.78 mm (including the insulation layer thickness)
  • Wire Tail Treatment
  • Wire tail fixed with adhesive
  • Winding Speed
  • ≤  20 S/PCS
  • Power Supply
  • AC 220V/380V 50Hz
  • Air Pressure
  • 0.4-0.6MPa
  • Dimensions
  • 1194*1975*2038mm
  • Power Consumption
  • 7.5kW (winding machine) + 4kW (vacuum cleaner)
