In automotive driving, the driver operates the steering wheel, which through a transmission mechanism causes the steering wheels to deflect a certain angle on the road surface to change the direction of travel, thereby ensuring the safe and stable driving of the vehicle. The complete set of mechanisms or devices that enable the steering wheels to deflect and achieve car steering is called the car steering system. The main function of the car steering is to control the direction of the car’s travel according to the driver’s will.
As an important subsystem of the car chassis system, the performance of the steering system directly affects the car’s handling stability, driving comfort, and driving safety. To improve performance and meet the driver’s needs for low-speed steering lightness, high-speed driving stability, and fuel economy, the car steering system has gone through four stages of development: Manual Steering (MS), Hydraulic Power Steering (HPS), Electro Hydraulic Power Steering (EHPS), and Electro Power Steering (EPS).
According to the different positions of the power assist motor installation, the EPS system can be roughly divided into three types: Column-EPS (C-EPS), Pinion-EPS (P-EPS), and Rack-EPS (R-EPS).
HONEST Automation’s EPS Motor Automated Production Line - General Assembly Section

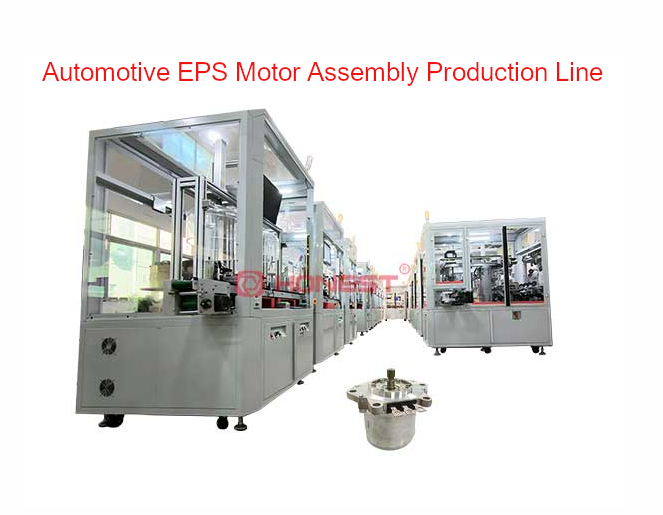

The production line adopts a straight-line layout, combined with the transmission method of ship plates and conveyor lines, which facilitates the loading and unloading of materials by employees and the observation of the production process of equipment.
HONEST Automation has profound technical accumulation and rich practical experience in the field of EPS motor production equipment. The following are several key links in our process and their equipment:
1.Bearing Riveting Machine
In this link, a high-precision servo press and pressure displacement sensor are configured to achieve precise pressing of bearings, and an advanced visual inspection system is used to ensure the quality of each riveting point. Qualified products are then released.
2.Magnetic Shield Installation Machine
In the glue application process, the dispensing head automatically descends and applies glue to the inner circle of the end cover. Subsequently, the magnetic shield is loaded onto the upper press mold, and the end cover is loaded onto the lower press mold. The visual photography inspection checks the glue application effect of the end cover, and qualified products directly flow back to the press working position. The servo press automatically presses the magnetic shield into the end cover, ensuring a perfect fit between the magnetic shield and the end cover, improving the product’s sealing and durability.
3.End Cover Assembly Machine
In this process, the machine automatically performs oiling and pressing work and is equipped with a visual photography system to check whether the wave pad is missing, ensuring the precise installation of components. In addition, a pressure displacement monitoring device is used to detect the pressing force and size of the rotor, thereby improving the operational efficiency and reliability of the motor.
4.Motor Assembly Machine
Integrated with high-frequency heating, cooling air ducts, and servo pressing technology, monitored by pressure displacement sensors, to ensure the perfect assembly of motor components, and through an automatic inspection system to ensure the accuracy of pressing size and assembly angle.
5.Comprehensive Quality Inspection and Assembly
Our production line is equipped with a series of advanced inspection equipment, including but not limited to:
A.Motor Performance Tester: This ensures the insulation and safety performance of the motor under high voltage conditions.
B.No-load Performance Tester: It tests the cogging torque and friction torque of the motor to evaluate its performance under no-load conditions.
C.Air Tightness Tester: This tests the sealing performance of the motor to ensure normal operation in various environments.
D.Comprehensive Dimensional Inspection Machine: 2D camera to determine dimensional accuracy and position, laser line scanning to determine measurement height, and displacement sensors to detect the depth of pin holes.
If you would like to know more details about other process links or inspection equipment, please feel free to contact us, and we will be happy to provide you with more specific content.

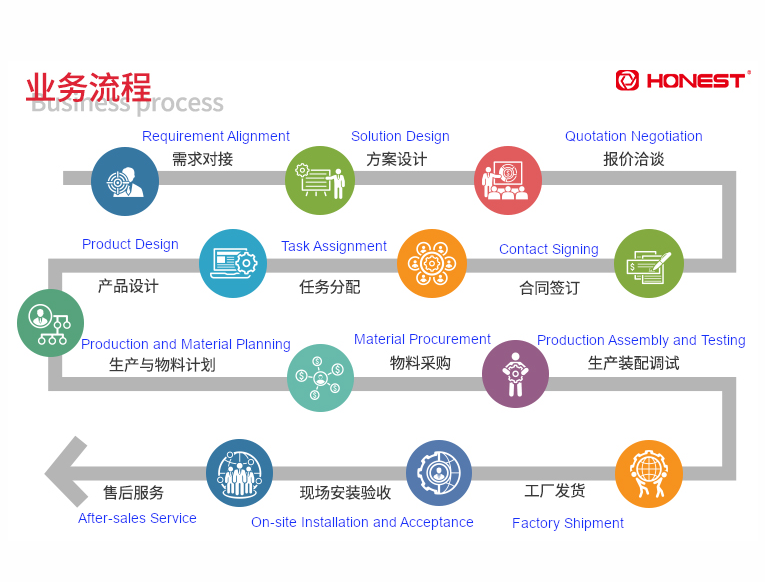

HONEST Automation’s Service and Advantages
1.Since its establishment in 2007, HONEST Automation has been deeply involved in the field of intelligent motor equipment manufacturing for more than ten years, serving many well-known domestic and foreign enterprises, with rich experience in formulating plans and production, and has been recognized and affirmed by many enterprises, receiving the “Best Supplier” trophy from customers many times.
2.Whether it is semi-automatic or automated equipment and production lines, they can be customized according to the actual needs and budget of customers.
3.Our equipment and production lines are highly automated, capable of automatically completing processes such as gluing, pressing, and monitoring, significantly improving production efficiency and saving labor requirements.
4.The production line has corresponding detection mechanisms in multiple links to ensuresmooth production, such as servo presses for detecting pressing force, displacement sensors for detecting pressing size, and quantitative valves for detecting the amount of glue applied.
5.The work information is fully traceable and can be read and tracked through handheld barcode guns and fixed readers, facilitating the supervision of the production process.
6.After the equipment is completed and delivered to the customer, a technical engineer will accompany the customer to the factory for acceptance and training or relevant personnel, ensuring that the equipment can be put into production as soon as possible and save time.
If you are interested in our EPS motor production line or have any questions, please feel free to contact us. Our professional team is always ready to provide you with detailed answers and customized services.
