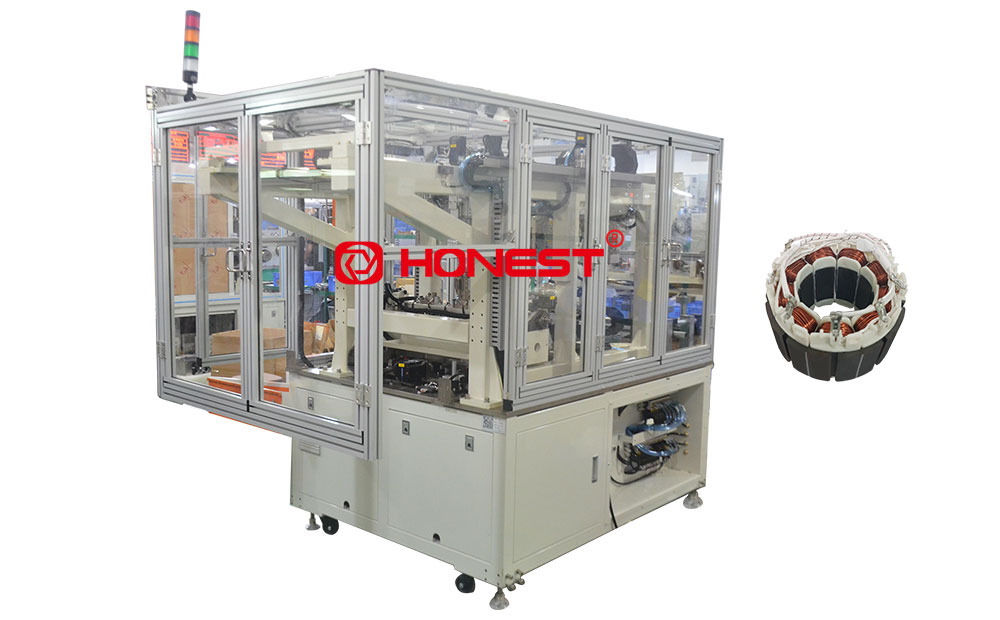

Expansion Straight Row Stator Winding Machine

The Expansion straight row stator winding machine adopts flying fork winding method, which has the function of waiting for materials, and uses an independent axis to arrange the wire to ensure the smoothness of the wire arrangement. It is controlled by Panasonic PLC and servo motor. The X.Y.Z axis is matched with winding terminals, the X.Y.Z.S axis is matched with wire passing, and the U axis is arranged independently.
Inquire Now
Product Details
Finished Product Drawing Finished Product Drawing Local Graph
Advantages
Equipment Parameters
  • Applicable Model
  • The stator length is less than 340mm (that is, the outer diameter is less than φ108), and the total stator height is less than 60mm
  • Applicable Wire Diameter
  • φ0.1-φ0.6mm
  • Wire Head and Wire Tail Treatment
  • Automatic Processing
  • Waiting Material Function
  • have
  • Winding Speed
  • Maximum 5000R/min
  • Power Supply
  • AC single phase 200V 50Hz 5KW
  • Air Pressure
  • 0.4-0.6MPa
  • Physical Dimension
  • 1720(L)*1100(W)*1680(H)mm
