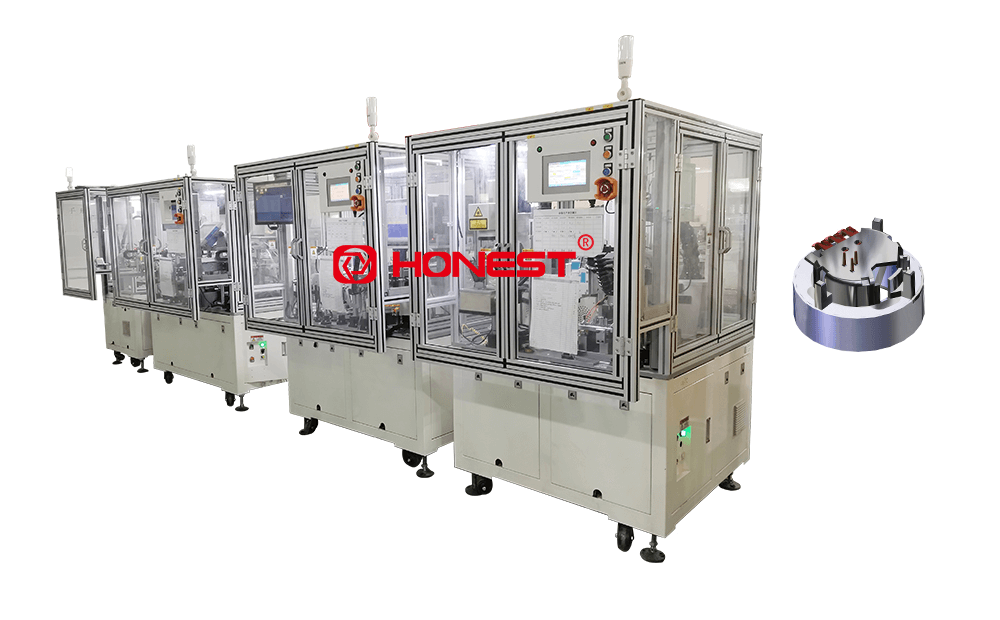

Water Pump Stator Production Line

This production line is used for the production of 20W water pump motors. The water pump stator production line consists of 6 pieces of equipment. The transportation method adopts a conveyor line + transport pallet, with a "back" layout. It mainly includes three major functions: stator winding, magnetic ring assembly and inspection, tooling positioning, prototyping design, and configuration of various types of sensors to effectively ensure the smooth progress of production and bring huge economic benefits to the enterprise.
Inquire Now
Product Details

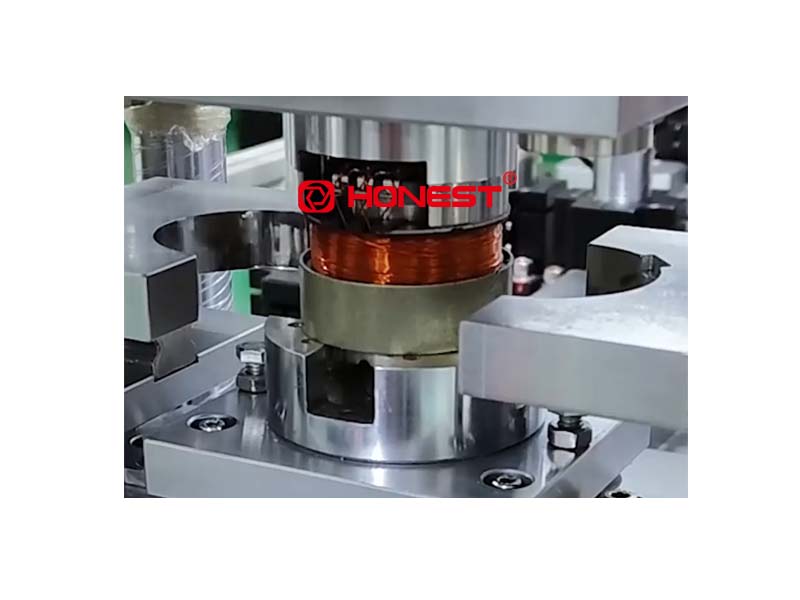

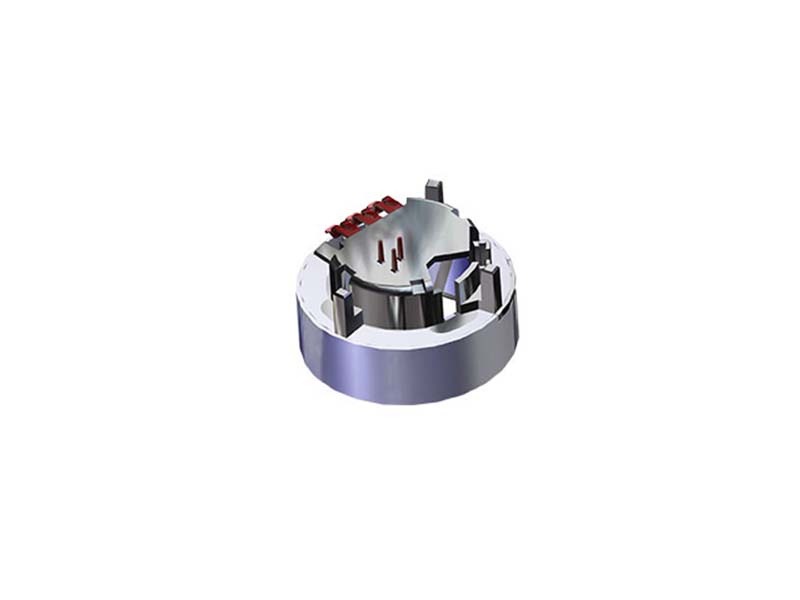

Split Graph Finished Product Drawing Local Graph
Advantages
Equipment Parameters
  • Production efficiency
  • ≤ 30 seconds/PCS
  • Yield rate
  • ≥98%
  • Utilization rate
  • ≥90%
  • Voltage
  • Single-phase AC 220V±10% 50Hz±10%; Three-phase AC 380V±10% 50Hz±10%
  • Air pressure
  • 0.4~0.6MPa
  • Power
  • whole line power≈68 KW
  • Control method
  • PLC+HMI
  • Size
  • 8000(L)*5000(W)*1800(H)mm
  • Application areas
  • water pump
