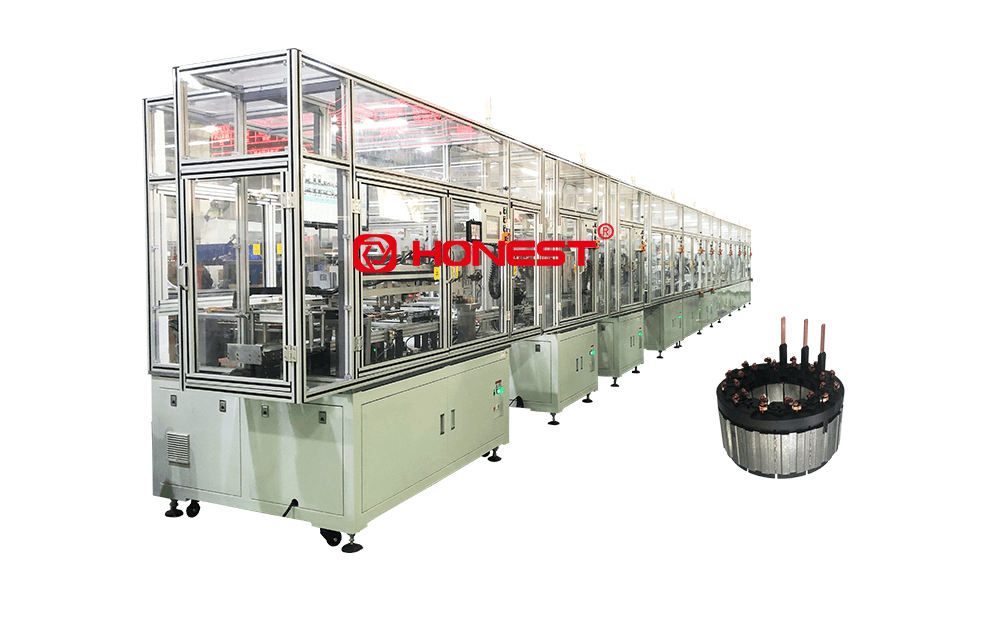

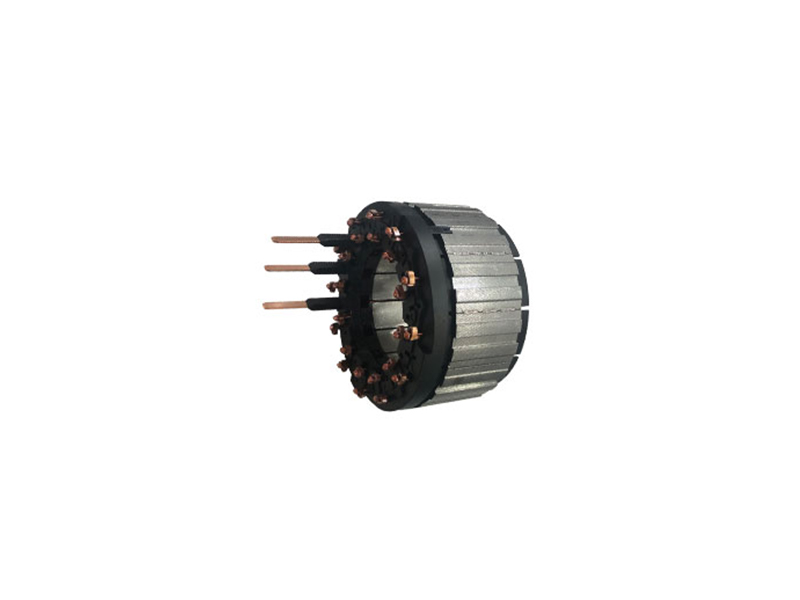

Motor stator block winding equipment is used in the field of brushless DC motors (automotive water pump motors). It mainly completes processes such as block stator winding, circle welding, wiring bridge assembly and performance testing. The entire line has a high degree of automation, has RFID function, and product traceability; it also has a data storage system, and the data is stored through Excel tables with reporting functions. The entire line adopts advanced production technology, supplemented by an all-round, no-dead Angle visual visual inspection system, which improves production efficiency and makes product quality more stable.
The transport pallet is equipped with RFID sensor for data traceability.
02
Welding into a circle, laser welding simultaneous welding of four welding seam, and the welding length is adjustable. It is equipped with a visual inspection system, and the welding process can be observed.
03

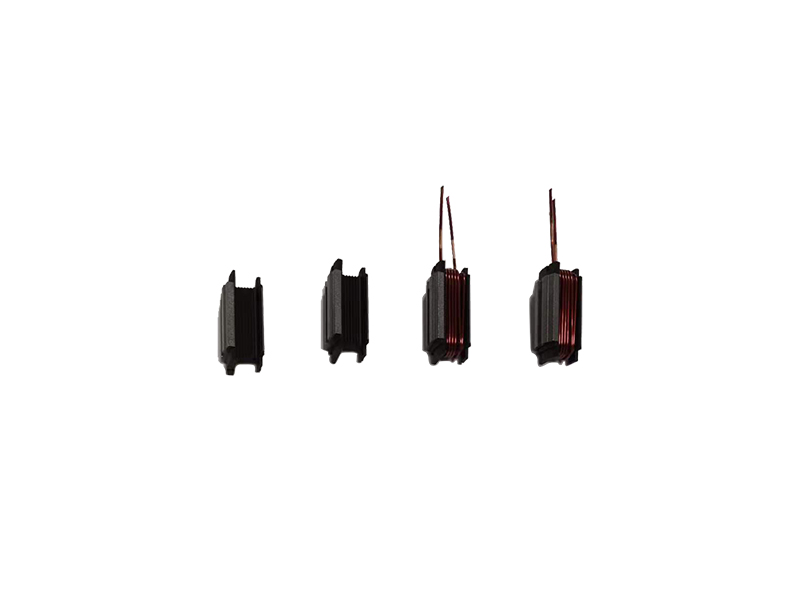

Double clamping jaws and switching method for winding loading and unloading, six stations can wind at the same time.
04
Modular design of the fixture, making product transfer quick and convenient
05

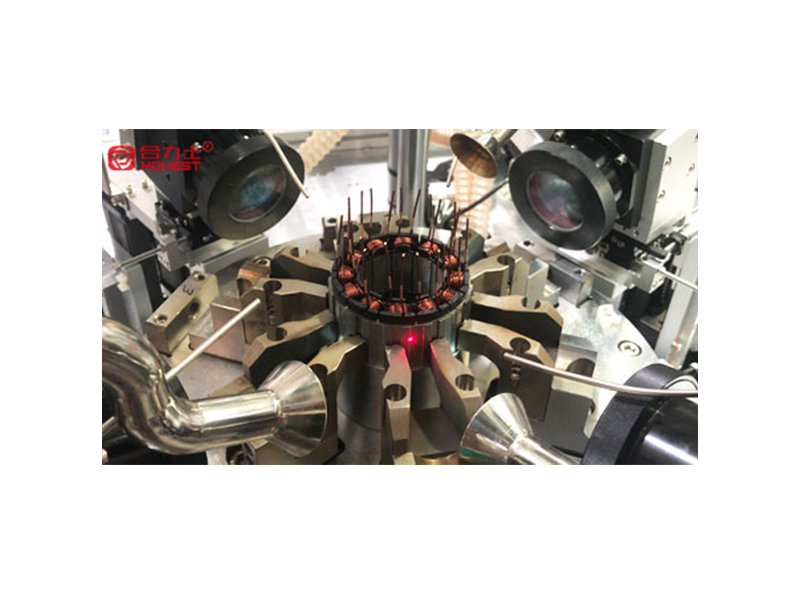

When shaping, configure 4 GT sensors to inspect the outer diameter, inspect it twice in the height direction, and generate concentricity inspection.
06
The wiring bridge adopt laser galvanometer for welding, which has the advantages of controllable welding penetration, no gaps between terminals and enameled wires, and avoiding wire damage caused by high-temperature splashes.
