DC motors (Direct Current Motors) are essential components in many industries, including automotive, robotics, power tools, and household appliances. Among the various types of DC motors, brushed and brushless DC motors (BLDC) are the most commonly used.

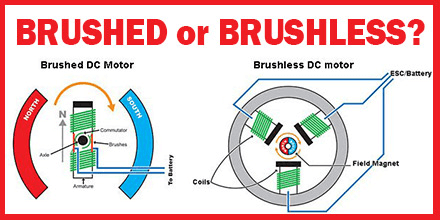

Each of these motors has distinct characteristics, advantages, and applications. Understanding the key differences between them helps engineers, manufacturers, and consumers choose the most suitable motor for their needs. This article will provide an in-depth comparison between brushed and brushless DC motors, covering their working principles, efficiency, lifespan, maintenance, applications, and more.
2. What is a Brushed DC Motor?
A brushed DC motor is one of the oldest and simplest types of electric motors. It uses mechanical brushes and a commutator to control the direction of current flow within the rotor.
Structure and Components
Stator: Provides a stationary magnetic field using permanent magnets or electromagnets.
Rotor (Armature): The rotating part that carries current.
Commutator: A segmented metal ring attached to the rotor, facilitating current switching.
Brushes: Carbon or graphite components that transfer current to the commutator.
Working Principle
Electrical current flows through the brushes into the commutator and then into the rotor windings.
The interaction between the rotor current and the stator's magnetic field generates a force, causing the rotor to spin.
As the rotor turns, the commutator segments switch the current direction, maintaining continuous rotation.
Common Applications
Automotive applications (windshield wipers, seat adjusters, power windows)
Power tools (drills, saws, screwdrivers)
Small appliances (fans, blenders, vacuum cleaners)
3. What is a Brushless DC Motor (BLDC)?
A brushless DC motor is a more advanced type of DC motor that eliminates the need for brushes and a commutator. Instead, it relies on an electronic controller to regulate the current flow to the stator windings.
Structure and Components
Stator: Contains multiple windings that create a rotating magnetic field.
Rotor: Equipped with permanent magnets and rotates in response to the stator’s magnetic field.
Electronic Speed Controller (ESC): A microcontroller-driven circuit that switches the current in the stator windings.
Working Principle
The ESC supplies current to specific stator windings in a sequence, generating a rotating magnetic field.
The rotor's permanent magnets interact with this field, causing it to spin.
Sensors detect the rotor’s position, allowing precise control of rotation speed and torque.
Common Applications
Electric vehicles (EVs, e-bikes, e-scooters)
Robotics and automation
Drones and UAVs
HVAC systems (fans, compressors)

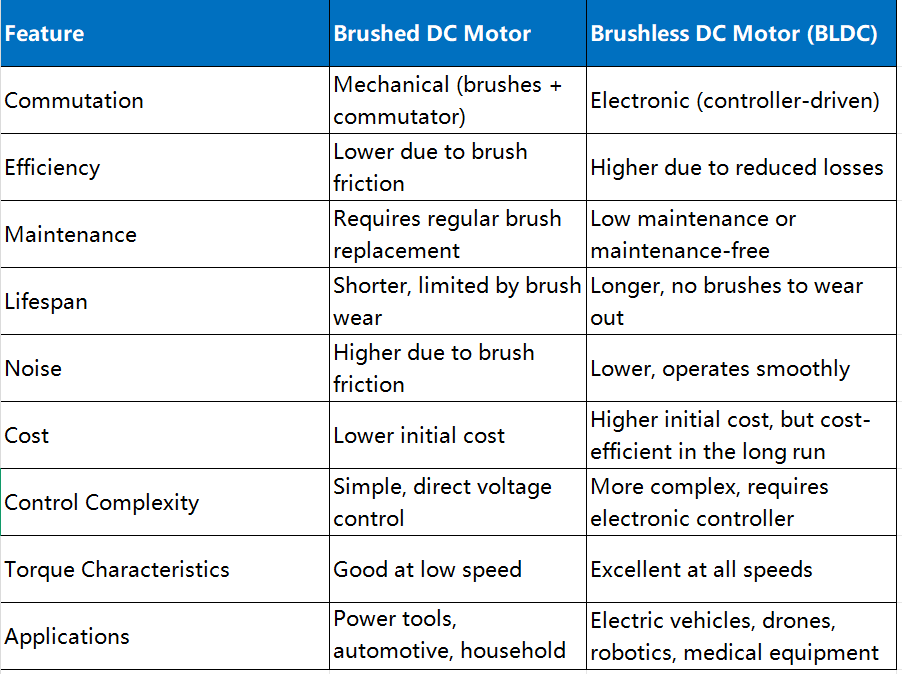

4. Key Differences Between Brushed and Brushless DC Motors
5. Pros and Cons of Brushed and Brushless Motors
Brushed DC Motor
Advantages:
Simple and cost-effective design
Easy to control without additional electronics
Suitable for low-cost applications
Disadvantages:
Brush wear leads to frequent maintenance
Generates electrical noise and sparks
Lower efficiency compared to BLDC motors
Brushless DC Motor (BLDC)
Advantages:
High efficiency and low energy consumption
Longer lifespan due to the absence of brushes
Smooth, quiet operation
Precise speed and torque control
Disadvantages:
Higher initial cost due to electronic control requirements
More complex to integrate into simple circuits
6. Which One Should You Choose?
The choice between brushed and brushless DC motors depends on your application requirements:
Choose a Brushed DC Motor if:
Cost is a primary concern.
The application requires simple motor control.
The expected lifespan is not a critical factor.
Choose a Brushless DC Motor if:
Efficiency and longevity are important.
The application requires precise control and high performance.
Noise reduction and maintenance-free operation are preferred.
In conclusion, brushed and brushless DC motors each have their strengths and weaknesses. While brushed motors are affordable and easy to control, brushless motors offer higher efficiency, longer lifespan, and lower maintenance. For industrial applications like electric vehicles, robotics, and high-performance automation, BLDC motors are the preferred choice.

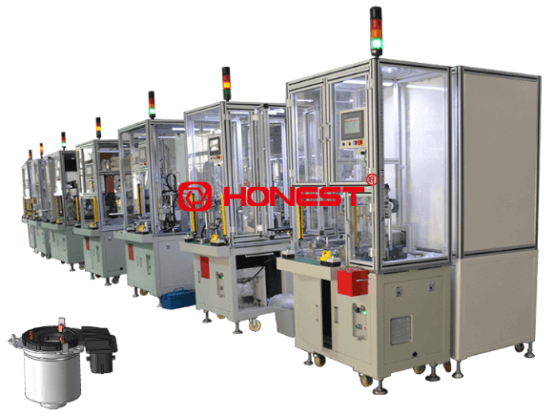

At HONEST Automation, we specialize in brushed and BLDC motor production line, including stator and rotor winding machines for both brushed and brushless DC motors. Our solutions enhance manufacturing efficiency and ensure top-quality motor production.
If you’re looking for high-performance motor assembly solutions, contact us today.
