Electric Vehicle (EV) Motor Manufacturing Solutions

Honest| 2024-04-11|Return

Electric vehicles (EVs) refer to vehicles that can be driven using electrical energy as power. According to the classification of power systems, electric vehicles can be divided into pure electric, battery electric, hybrid, and fuel cell vehicles.



Compared with traditional internal combustion engine (ICE) vehicles, electric vehicles are new energy vehicles and have the advantages of low exhaust emissions, responsiveness, and quiet driving.



With global support policies in place, the EV market is experiencing rapid growth, driven by investment in research, development, manufacturing, and adoption of these vehicles.



The Advantages of EVs:

1. Environmentally Friendliness: EVs eliminate exhaust emissions, aligning with eco-friendly principles;

2. Cost-Effective Operation: The cost of charging electric vehicles is usually lower than the cost of refueling fuel vehicles. Moreover, electric vehicles also have lower maintenance costs because they have relatively simple mechanics and fewer wear parts;

3. Noise Reduction: Electric vehicles are quieter when running than internal combustion engine vehicles, helping to reduce noise pollution;

4. Energy Efficiency: Electric vehicles have higher energy conversion efficiency and can use energy more effectively. Electric motors are generally much more efficient at converting electrical energy into mechanical energy than internal combustion engines, which means electric vehicles can travel longer distances per unit of energy consumption;

5. Energy Transition: The popularity of electric vehicles will help promote the transition from fossil energy to renewable energy. Especially when combined with renewable energy such as solar energy and wind energy, it can further reduce dependence on traditional energy and promote energy structure optimization and sustainable development.

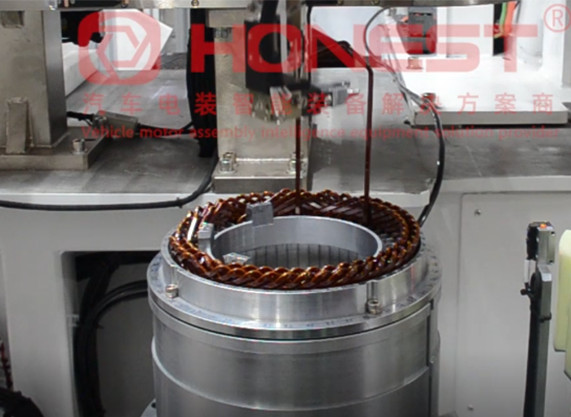

local graph.jpg

How EVs Function:



EVs harness energy from onboard battery packs. When accelerating, the motor controller directs current from the battery to the motor, which transforms electrical energy into mechanical motion, propelling the vehicle. The electronic control system manages vehicle performance, including battery charge, motor speed and torque, and vehicle speed. Regenerative braking during deceleration further enhances energy efficiency.



Applications of Electric Motors in EVs



The motor is not only the core of the power source of electric vehicles but also has an important impact on the overall performance, efficiency, and driving experience of the vehicle. Details are as follows:

1. Power Output: The motor provides the necessary power for electric vehicles to achieve acceleration, climbing, and maintaining stable driving;

2. Efficient Energy Conversion: The motor converts the electrical energy stored in the battery into mechanical energy, and its efficiency will directly affect the cruising range of the EV;

3. Energy Recovery: During braking or deceleration, the electric vehicle’s motor can act as a generator, converting kinetic energy back into electrical energy and storing it back into the battery. This process is called regenerative braking. It improves energy efficiency and reduces maintenance costs;

4. Silent Operation: The operating noise of the motor of an electric vehicle is much smaller than that of an internal combustion engine, helping to provide a quieter and more comfortable driving environment.


The Characteristics of Electric Vehicle Motors

1. High Efficiency: Electric vehicle motors need to have high-efficiency energy conversion capabilities to maximize battery life;

2. High Torque: The motor can provide high torque at low speed to meet the needs of vehicle starting and climbing;

3. Wide Speed Range: EV motors usually need to work within a wide speed range to adapt to different driving conditions;

4. Compactness: EV motors need to be designed to be compact enough to adapt to the space constraints of the vehicle;

5. Reliability: EVs need to maintain a high degree of reliability and durability under various working conditions.

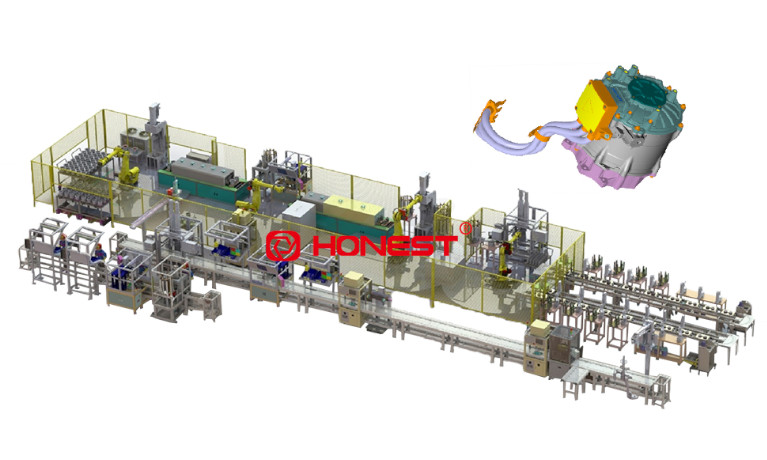

HONEST New Energy Vehicle Drive Motor Assembly Equipment


The equipment process includes rotor press-fit bearing, resolver rotor, and pressure plate press-fit, and so on, install the front oil deflector on the main shell, shell heating, stator heating assembly, shell cooling, electrical performance test, final tightening and fixing of main reduction gear, motor assembly cooling, O-ring, shell glue coating, installation of cooler, installation of filter press, Filling screw plug, airtight test, product appearance inspection, packaging, storage, etc.

New Energy Vehicle Drive Motor Assembly Equipment.jpg

Advantages

1. The equipment is highly automated and intelligent, and all processes have error-proof and leak-proof detection;

2. Configure the whole line data acquisition system to ensure that each process can be traced;

3. The newly designed drive assembly structure develops a stable and reliable flexible assembly mechanism to ensure reliable assembly quality;

4. Reasonable distribution of robots to maximize the use efficiency of robots; automatic connection between the line body;

5. Digitally manage the production line, and process data binding;

6. It can be customized according to customer needs.


Equipment Parameters

1. Production Efficiency: 100s/pcs;

2. Compatible Products: 2 models;

3. Yield Rate: 99.9%;

4. Voltage: 80V/220V;

5. Utilization Rate: The whole line≥95%;

6.Appearance Size: 58000(L)*20000(W)*2800(H)mm.


If you are looking for electric vehicle motor winding and assembly equipment solutions, welcome to contact us. HONEST HLS provides customized system solutions and free quotations. It has rich experience and successful cases in the field of motor winding and assembly.


Look forward to hearing from you.
