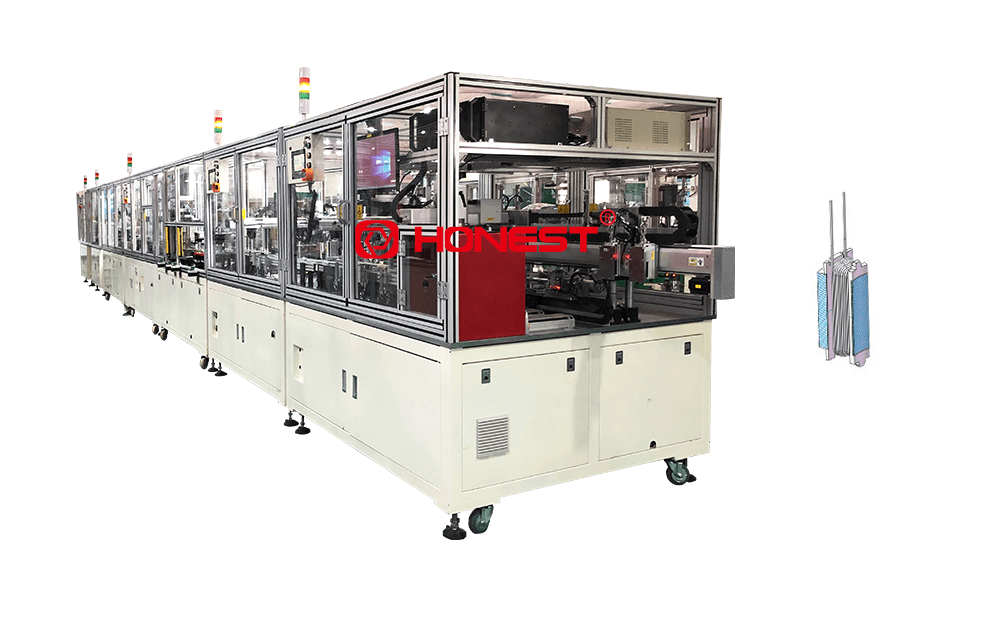

Brushless Motor Block Stator Production Line

The brushless motor block stator production line is used in the field of external rotor DC brushless motors (automotive electric oil pump motors). It mainly completes: loading, segmented stator winding, paint removing, rounding and laser coding. The degree of automation is High, with the characteristics of high efficiency, high qualification rate and stable product quality. The equipment applies RFID solutions and is equipped with a central control system that can trace the production of any batch of workpieces, making the production process controllable and traceable, and has reporting functions to meet the production requirements of the purchaser.
Inquire Now
Product Details

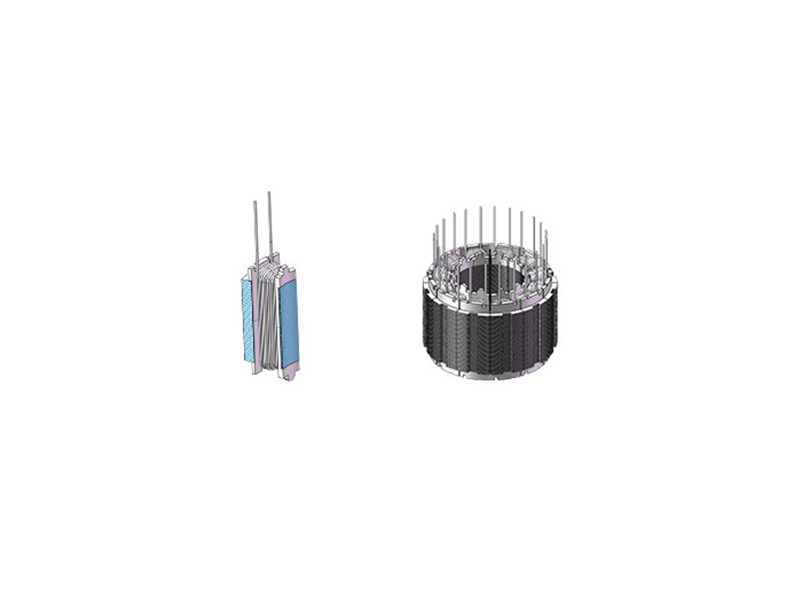

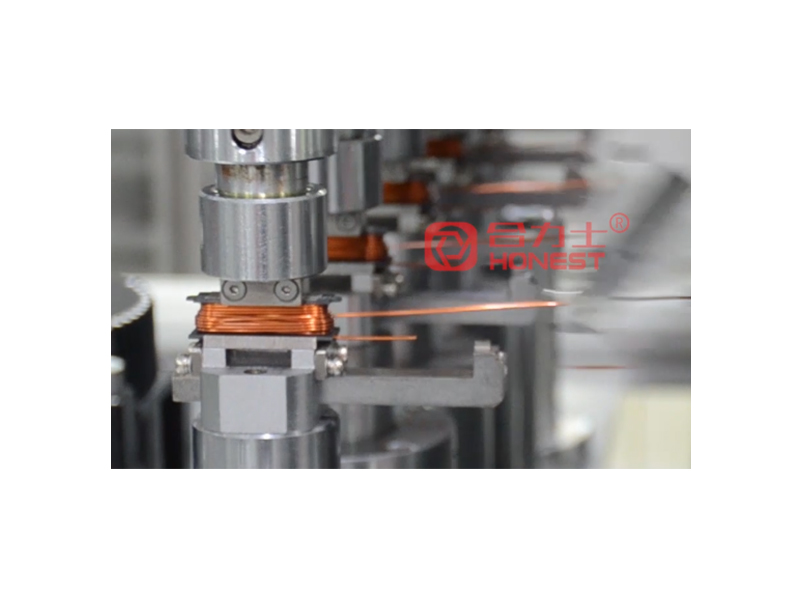

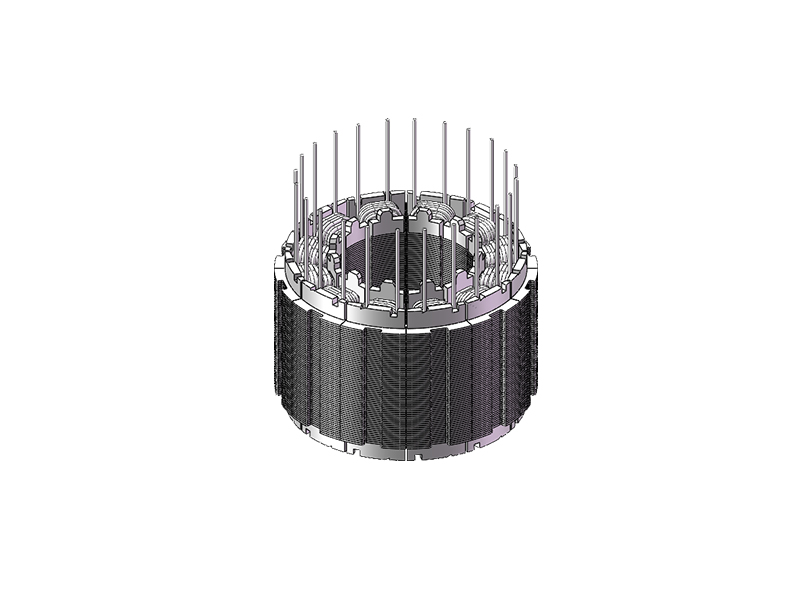

Split Graph Finished Product Drawing Local Graph
Advantages
Equipment Parameters
  • Production efficiency
  • 9.7s/pcs (12-slot product)
  • Power
  • 70KW
  • Yield rate
  • ≥99%
  • Utilization rate of the entire line
  • ≥90%
  • Voltage
  • 3-phase 200V 50HZ
  • Air pressure
  • 0.4~0.6MPa
  • Control method
  • PLC + touch screen
  • Size
  • 14000(L)*2400(W)*1800(H)m
