Claw Pole Motor Assembly Line

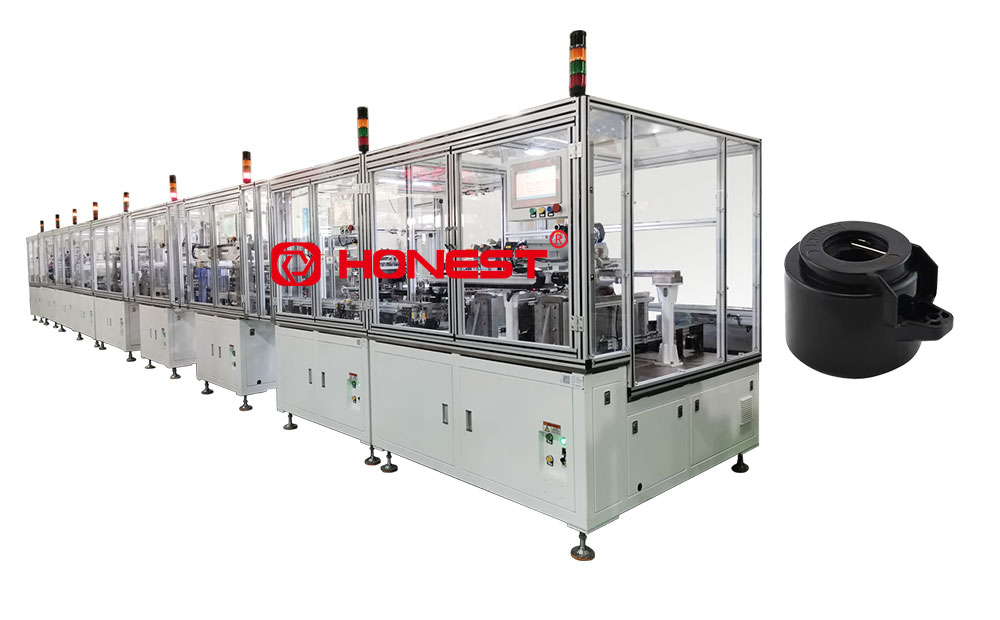

The claw pole motor assembly line is designed for the assembly of automotive brake valve claw pole permanent magnet synchronous motors. The production line consists of multiple machines, with a conveyor system combined with pallet transfer, arranged in a straight “I-shaped” layout.



The line is divided into pre-injection and post-injection sections and primarily performs three key functions: stator winding on the frame, housing assembly, and stator assembly. It features precision tooling positioning and profile-matching design, is equipped with various types of sensors for full-process monitoring, employs high-precision inspection instruments, and includes corresponding alert and alarm mechanisms to ensure smooth and accurate production.

Inquire Now
Product Details

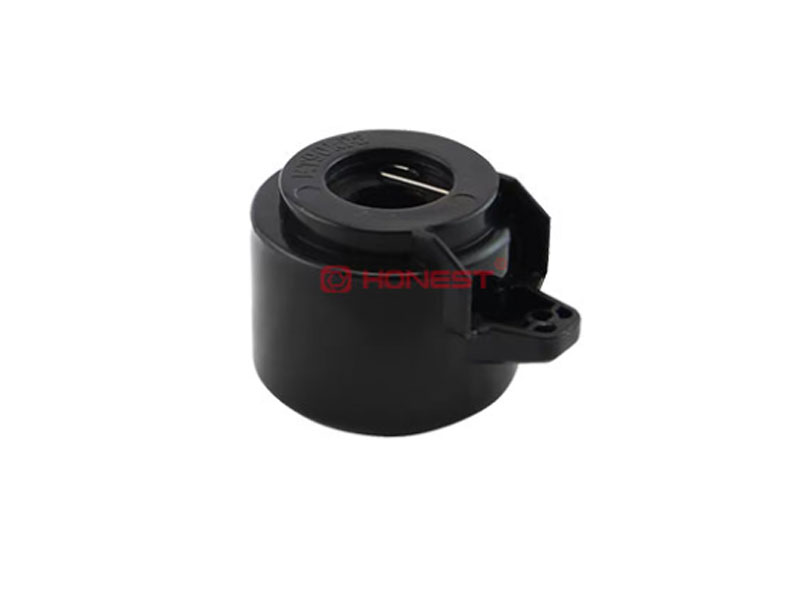

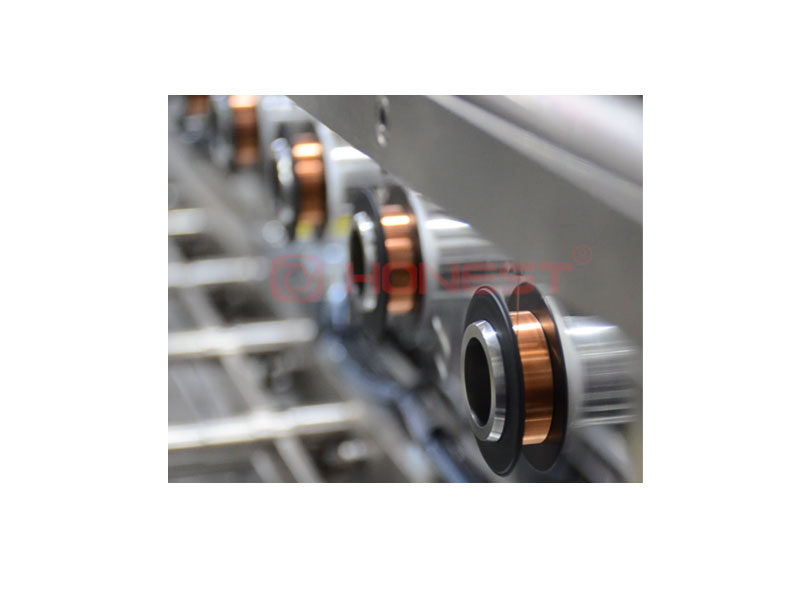

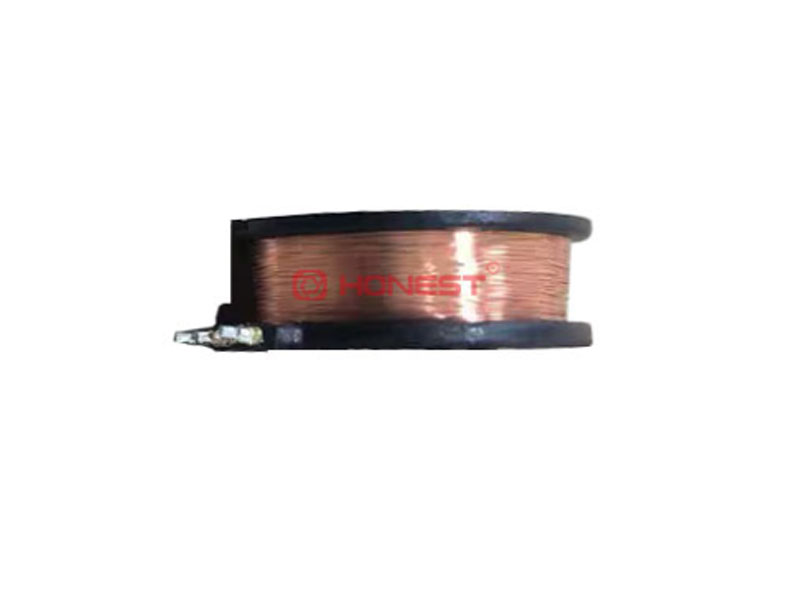

Winding Diagram Finished Product Drawing-2 Local Graph-2
Advantages
Equipment Parameters
  • Production efficiency
  • 5–20 s/pc (customizable based on requirements)
  • Yield Rate
  • ≥ 97%
  • Equipment Utilization
  • ≥90%
  • Power Supply
  • AC 220V / 380V, 50 Hz
  • Air pressure
  • 0.4-0.6Mpa
  • Power
  • 40 kW
  • Control System
  • PLC+HMI
  • Dimensions
  • 15,000 (L) × 1,800 (W) × 2,200 (H) mm
  • Application field
  • Automotive Brake Valves
