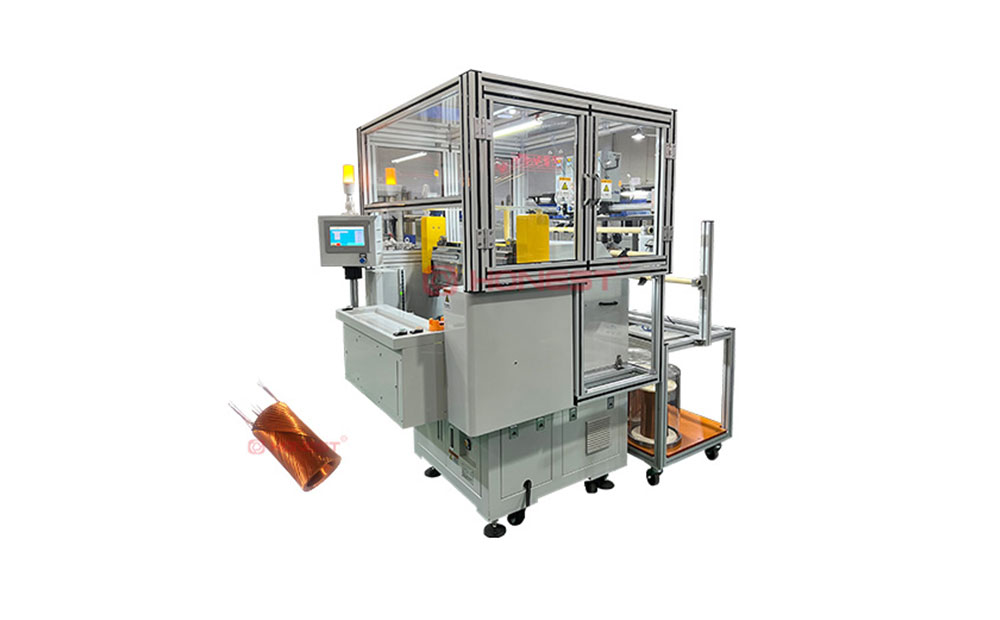

Coreless Motor Winding Machine

Coreless Motor Winding Machine is a high-precision automatic equipment specially designed for coreless (ironless) motor coils. It adopts multi-axis servo linkage and closed-loop constant tension control to achieve stable and high-density winding of ultra-fine enameled wire. The machine features high winding accuracy, full-process automation, quick model changeover, and a yield rate of ≥98%, effectively preventing wire breakage and enamel damage. It is widely used in coreless motors, servo actuators, medical devices, UAV power systems, automotive micro motors, and humanoid robot joint motors in high-end applications.

Our technology is fully proven in mass production. Contact us for customized solutions.

Inquire Now
Product Details

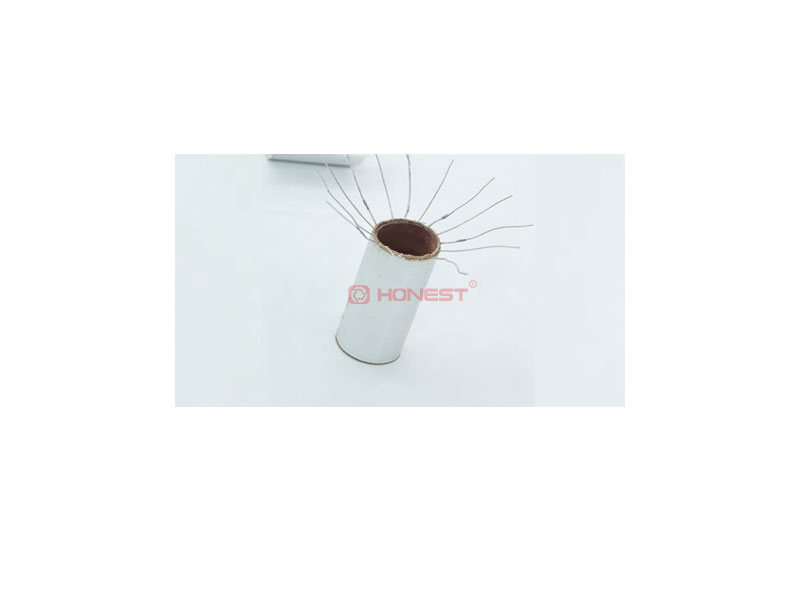

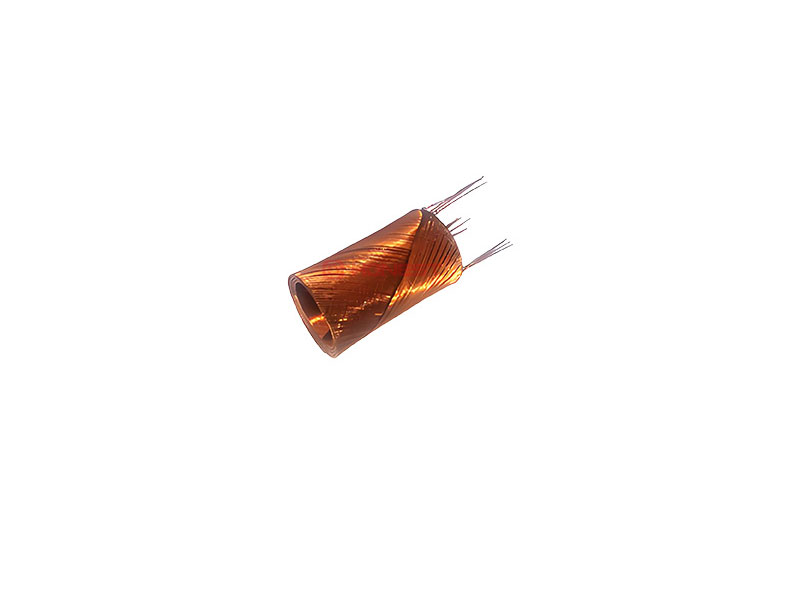

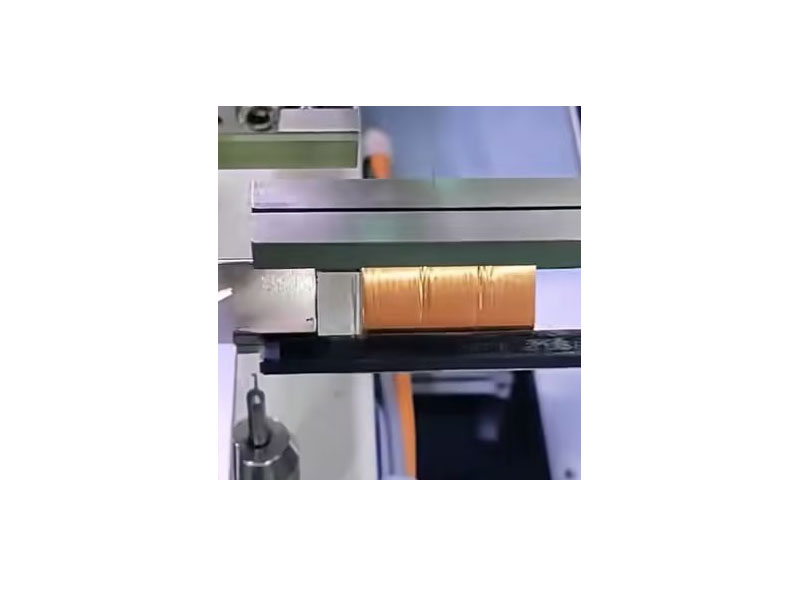

Winding Diagram Local Graph Local Graph
Advantages
Equipment Parameters
  • Winding Speed
  • Max. 6000 rpm
  • Copper Wire Specification
  • Min. 0.018 mm
  • Winding Spindle Configuration
  • 2-axis / 4-axis
  • Control System
  • PLC + HMI
  • Applications
  • Robotics, Medical, Aerospace, etc
