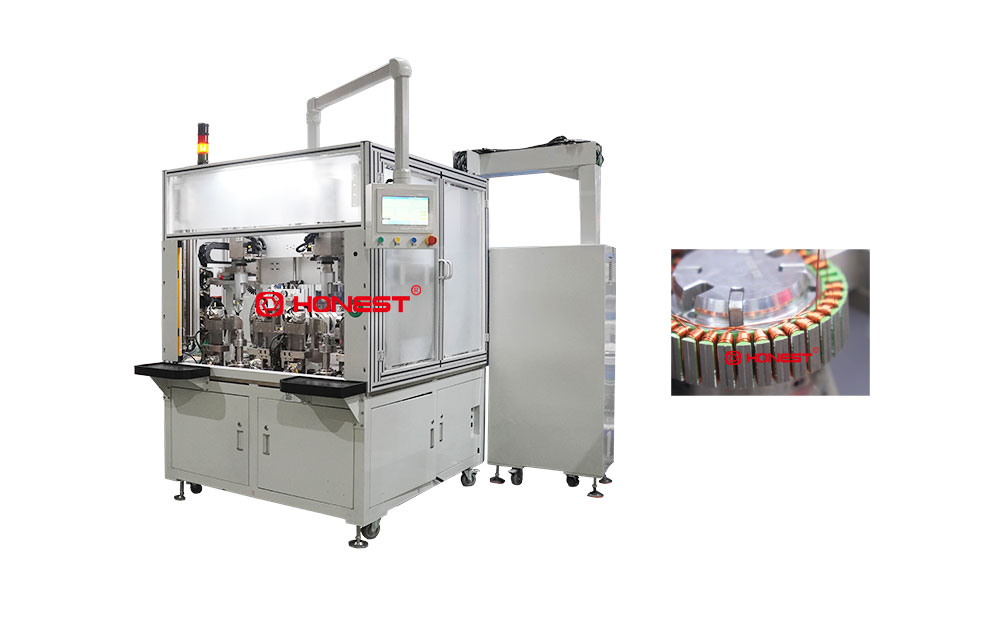

Frameless Torque Motor Stator Winding Machine

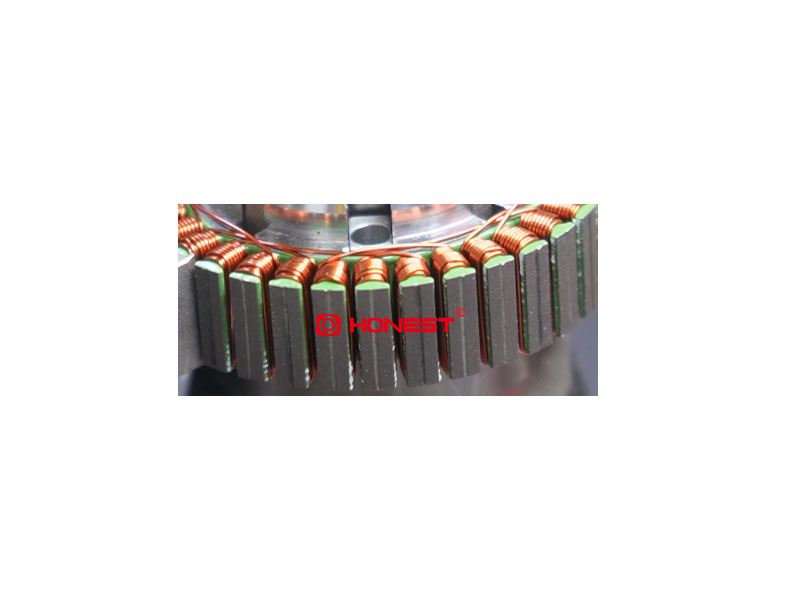

The Frameless Torque Motor Stator Winding Machine is designed for stator external winding applications of brushless motors used in humanoid robots and automotive applications. It integrates key processes including stator wire hooking, winding, wire arrangement, pole changing, and wire cutting.

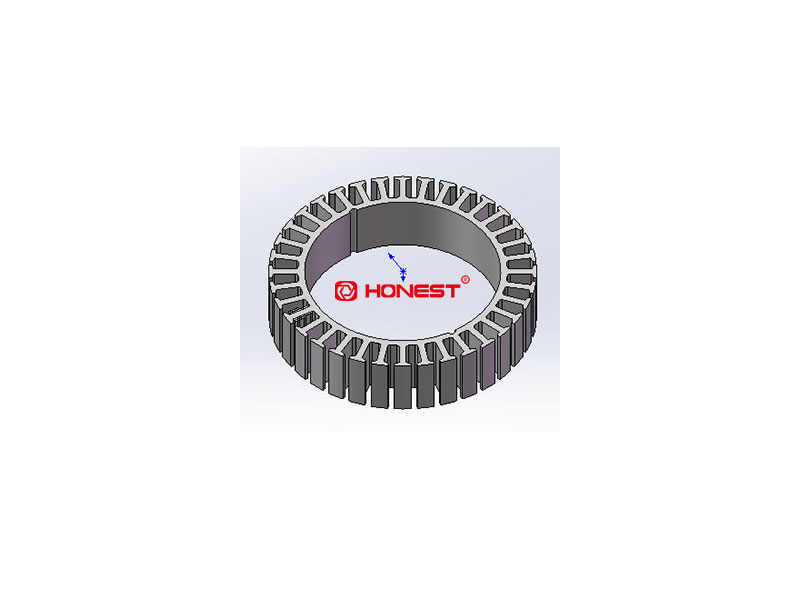

The machine supports stator winding for wire diameters from 0.6 mm to 1.5 mm, stator outer diameters from 40 mm to 90 mm, and stator heights from 10 mm to 40 mm. With a wide compatibility range, the equipment can be customized according to customers’ specific process requirements.

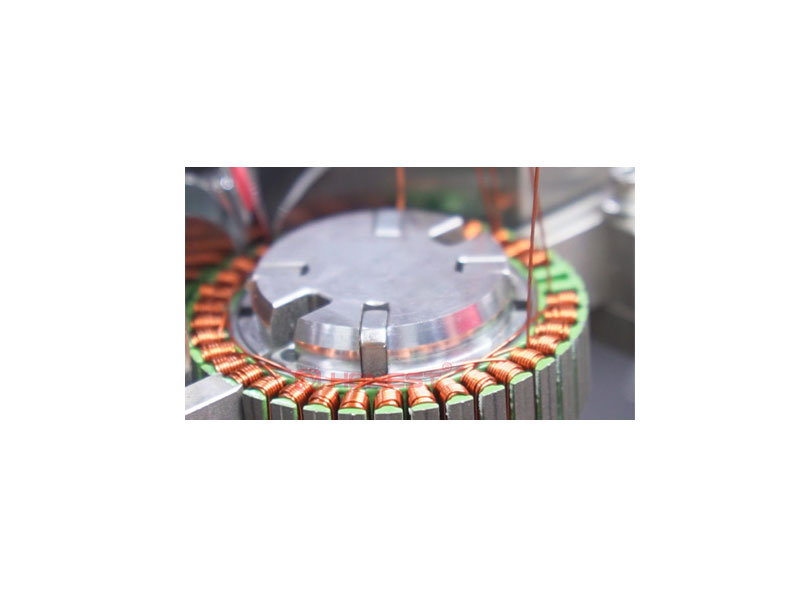

Featuring a unique mechanical design and precisely controlled process sequence, the machine automatically completes winding, wire arrangement, wire cutting, and lead wire end finishing, ensuring consistent product appearance and reliable winding quality.
