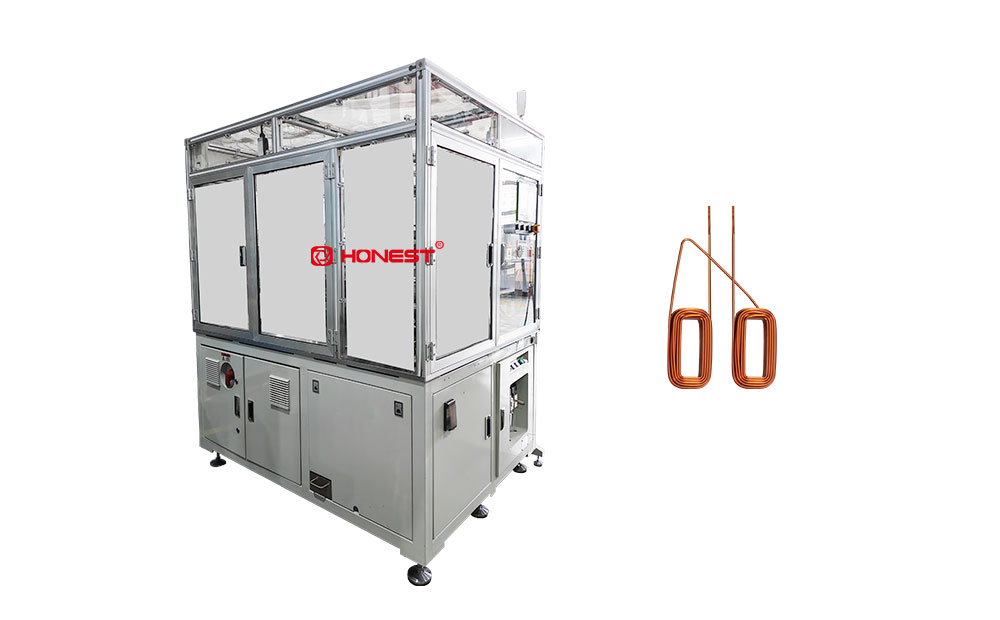

Mid-Drive Motor Stator Flat Wire Coil Winding Machine

The Stator Flat Wire Coil Winding Machine is mainly applied for mid-drive motor stator manufacturing, integrating key processes including flat wire winding, wire arrangement, enamel stripping, and wire cutting. It is compatible with flat wire sizes of 0.74 × 1.22 mm.

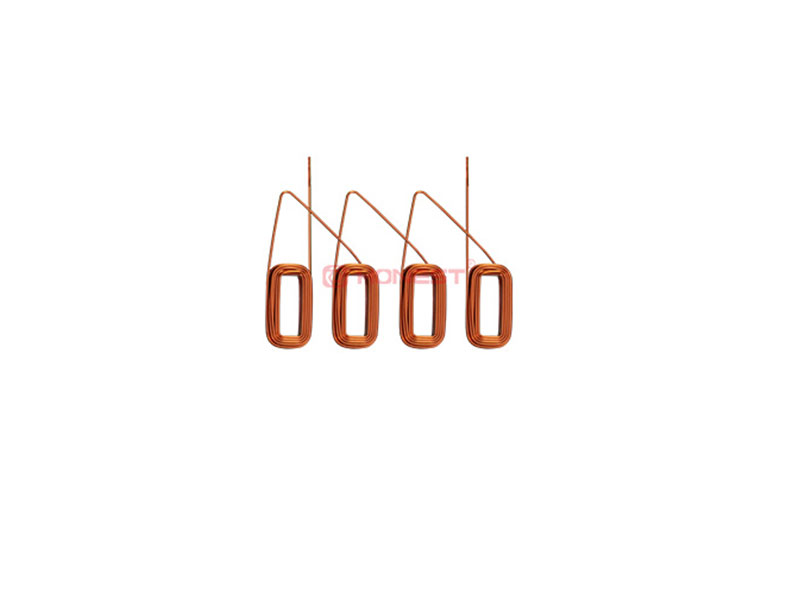

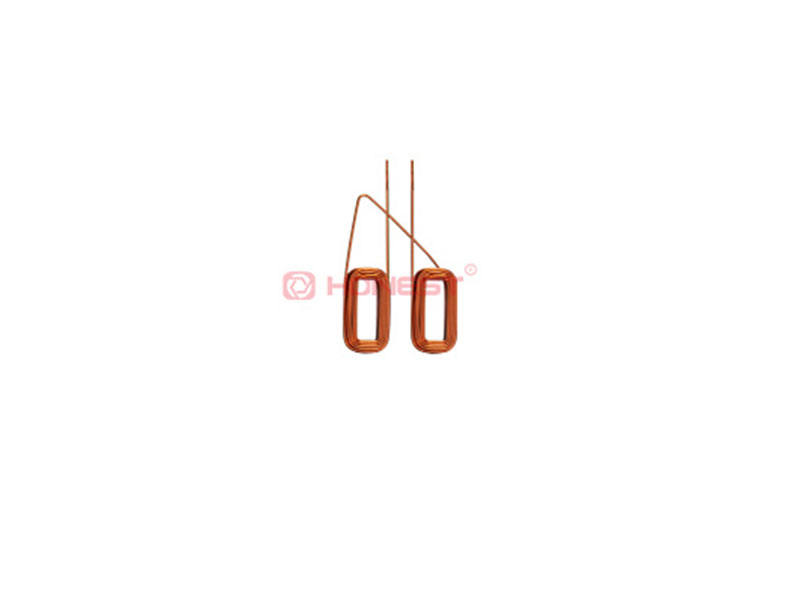

Equipped with a precision wire feeding and enamel stripping system, the machine enables accurate wire length detection, multi-directional enamel stripping, and automatic coil winding. The winding spindle, tooling rotation, driven mechanism, and pole changing mechanism work together to ensure stable and high-quality flat wire coil production.

With a unique mechanical design and flexible changeover capability, the equipment supports different product models while ensuring consistent winding performance, product appearance, and reliability.
