Controller Motor Back Cover Assembly Line

The controller motor back cover assembly line consists of 5 sets of equipment arranged in a straight line. The main conveyor adopts a double-speed chain. The modular structure design of each process workstation is suitable for the assembly of the controllers of the two products. Its design saves 6 operators, reduces the company's labor costs while ensuring production efficiency and more stable quality. The main processes of the equipment include: shell loading, circuit board loading and assembly, pre-tightening PCBA screws, fastening radiator, wire crimping, fastening PCBA screws + assembly of leading wire injection molded parts, appearance inspection + scanning + packing, etc.
Inquire Now
Product Details

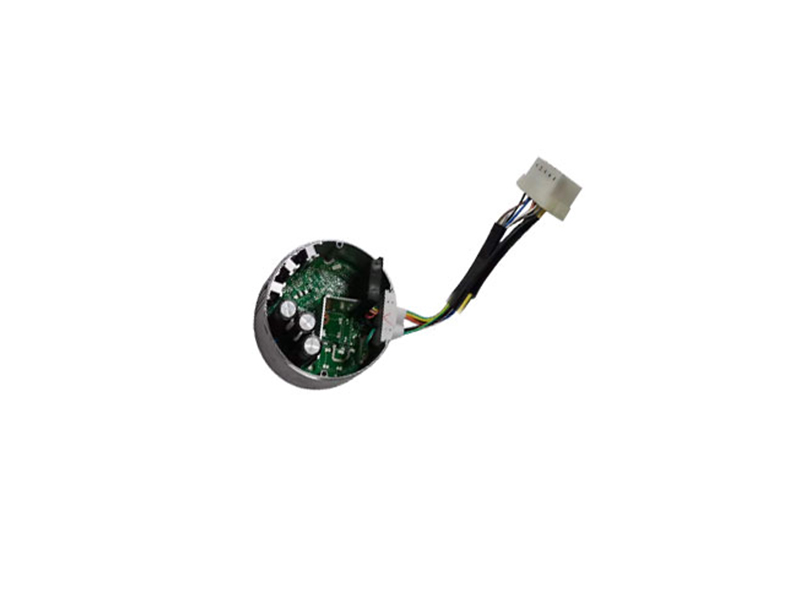

Split Graph Finished Product Drawing Local Graph
Advantages
Equipment Parameters
  • Production efficiency
  • 10.6s/pcs
  • Compatible products
  • 2 products
  • Exchange time
  • ≤10min
  • Yield rate
  • ≥99.9%
  • Utilization rate
  • 90%
  • Voltage
  • AC220V 50HZ
  • Air pressure
  • 0.3~0.8Mpa
  • Power
  • The whole line is about 15KW
  • Control method
  • PLC + touch screen
  • Size
  • 1000(L)*3100(W)*2000(H)mm
