Rotor Precision Finish Turning Machine

The rotor precision turning machine equipment adopts imported control, with stable operation and simple operation; Touch screen display; The feed adopts a servo motor to ensure stable feed quantity; The number of turns can be adjusted, and the speed of each turn can be adjusted separately; The rotor pressure uses vertical pressure.
Inquire Now
Product Details

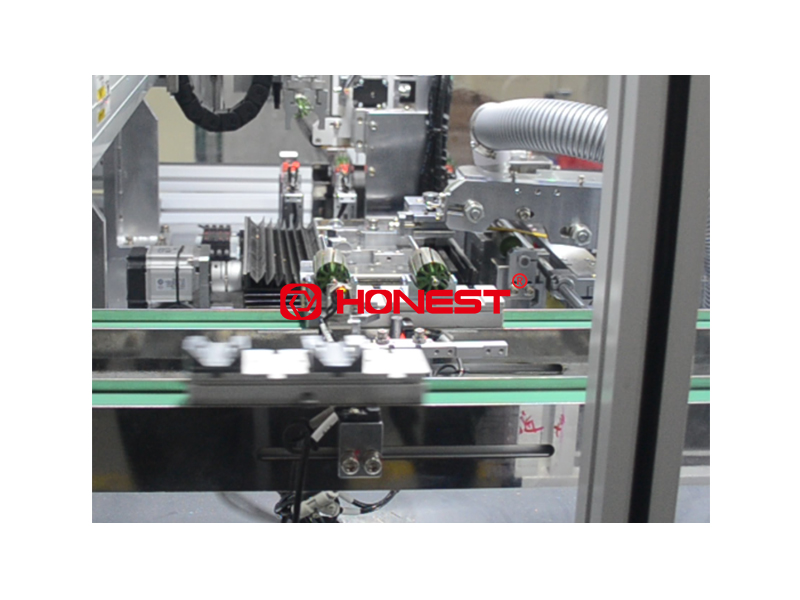

Finished Product Drawing Finished Product Drawing Local Graph
Advantages
Equipment Parameters
  • Complete the process
  • turning the commutator
  • Feed mode
  • servo motor
  • The number of feed times
  • can be set from 1 to 9, and each feed amount can be set separately
  • Commutator roundness
  • <0.005mm<>
  • Commutator section deviation
  • roundness<5um<>
  • Coaxiality
  • <0.005mm<>
  • Production capacity
  • 800pcs/h
  • Power supply
  • AC 380V 50HZ
  • Air pressure
  • 0.5-0.7MPA
  • External dimensions
  • 2000 (L) * 700 (W) * 1850 (H) mm
