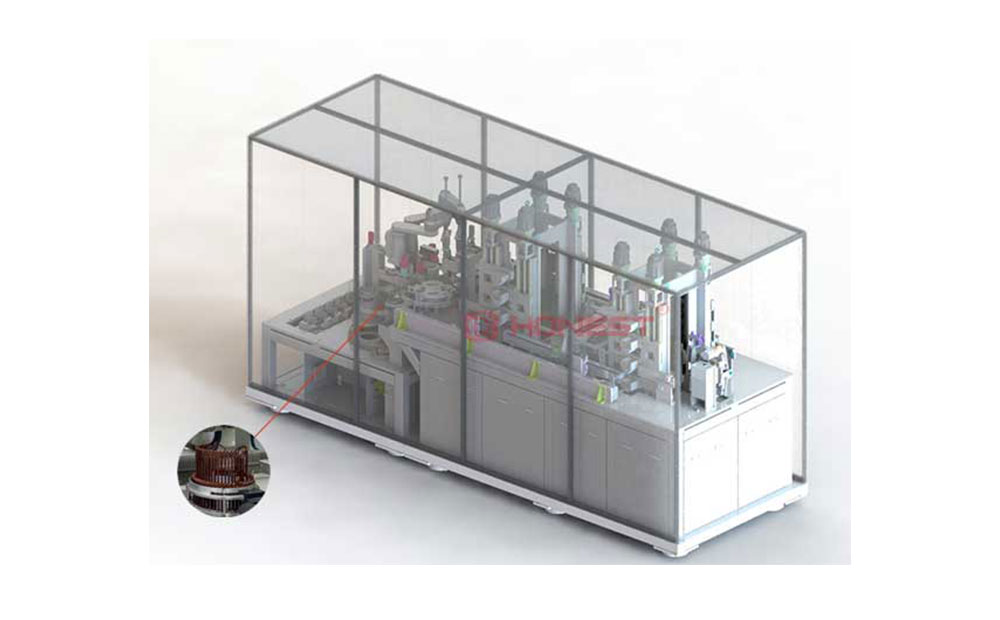

Dual-Channel Hairpin Wire Forming Machine

The Dual-Channel Hairpin Stator Wire Forming Machine can achieve an efficiency of up to 1 second per wire. The equipment is compatible with H-PIN, X-PIN, and MINI-PIN production requirements.


The machine mainly consists of three major sections: the wire feeding unit, the enamel stripping unit, and wire forming unit. Featuring a high level of automation and intelligence, the equipment can also be integrated with an MES system to realize functions such as real-time production status dashboards, quality traceability systems, and factory information management.

Inquire Now
Product Details

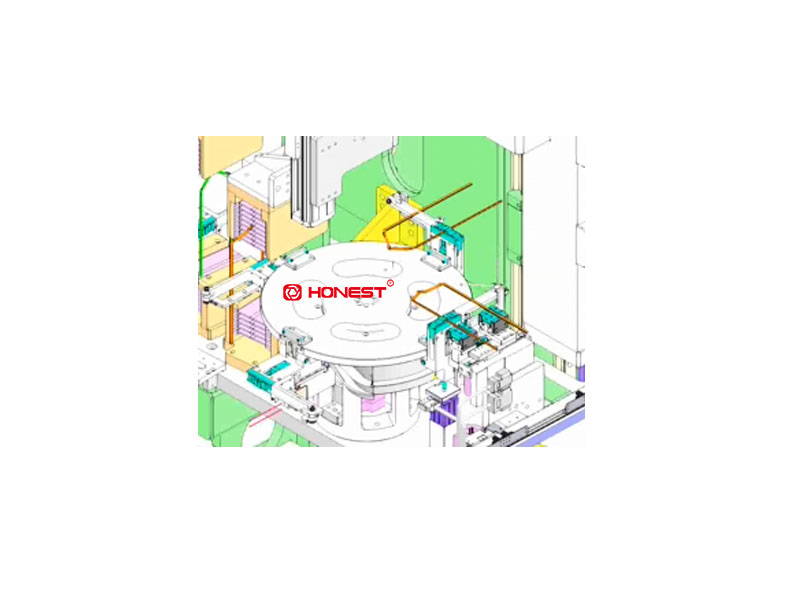

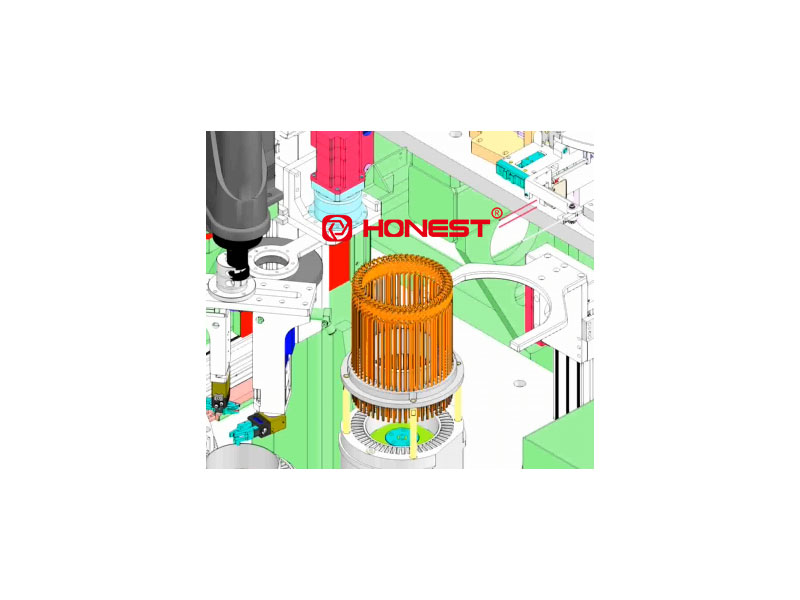

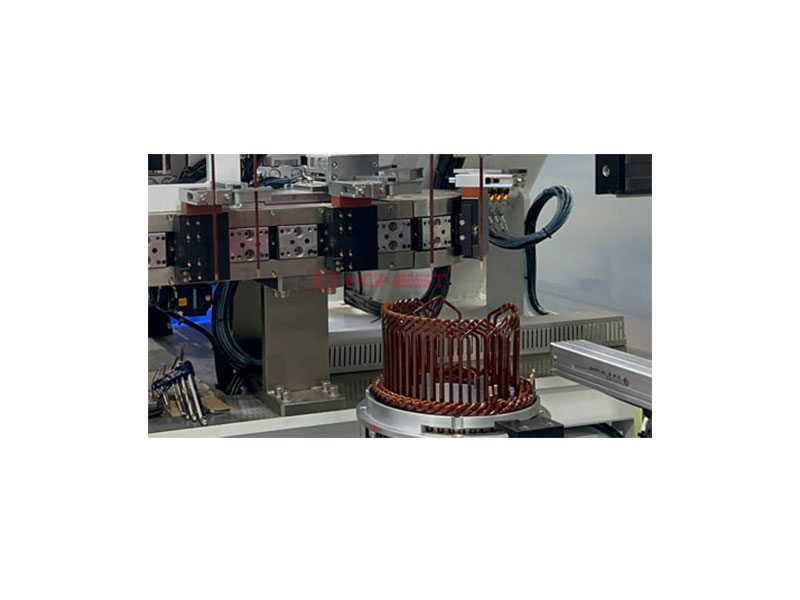

Split Graph-1 Local Graph-1 Local Graph
Advantages
Equipment Parameters
  • Production Efficiency
  • 1 S/PCS
  • Compatibility
  • H-PIN / X-PIN / MINI-PIN
  • Changeover Time
  • One-click automatic changeover
  • Yield Rate
  • ≥95%
  • Utilization rate
  • ≥90%
  • Voltage
  • AC 220V / 380V, 50Hz
  • Air Pressure
  • 0.45 MPa ~ 0.65 MPa
  • Power
  • 10 kW
  • Automation Level
  • Fully Automatic
  • Application Field
  • Hairpin Motors
