The electric vehicle (EV) revolution is fundamentally reshaping the automotive landscape, and at the heart of this transformation is the drive motor. To meet the escalating demands for higher power density, superior thermal dissipation, and greater efficiency, the industry is rapidly shifting from traditional round-wire designs to hairpin technology.
However, manufacturing hairpin motors is notoriously complex. Finding a reliable hairpin motor production line manufacturer that can deliver high-yield, stable, and flexible automation is a critical challenge for EV motor makers. As a leading provider of hairpin stator assembly lines, HONEST Automation understands these intricacies. If you are sourcing a hairpin motor assembly line, here is the comprehensive guide to making the right choice.
Why the Shift to Hairpin Motor Production Lines

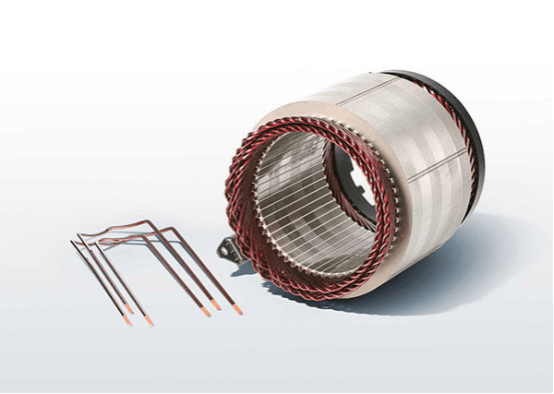

Hairpin motors indeed offer significant performance advantages—namely, a higher slot fill factor (often exceeding 70%) and better cooling capabilities. But these advantages come at a steep manufacturing cost.
Unlike round wire winding, which is relatively forgiving, flat wire motor production involves a rigid sequence of high-precision operations: U-Pin/X-Pin forming, slot insulation paper insertion, precise pin insertion, twisting (turking), and laser welding. A slight deviation in the bending radius of a hairpin wire or a microsecond error in laser alignment can lead to short circuits or high resistance, rendering the entire stator scrap.
This is why general automation vendors fall short. You need a hairpin motor automation equipment manufacturer with deep domain expertise in the physics of flat wire and the nuances of high-speed production.
5 Key Criteria for Evaluating Hairpin Motor Production Line Manufacturers
When evaluating potential suppliers for your next hairpin motor assembly line, do not just compare price tags. Use these five critical criteria to assess their true capabilities:
1. End-to-End Turnkey Capability
Can the manufacturer deliver a complete, integrated line from wire drawing to the final EVG (Electrical Vehicle Generator) testing? Some vendors specialize in standalone winding machines but lack integration expertise. A true turnkey partner ensures seamless data flow and mechanical handoff between the forming, inserting, twisting, and welding stations, eliminating bottleneck risks.
2. Yield Rate and Process Stability
In mass production, a 1% drop in yield can cost millions. Ask potential suppliers for their proven Overall Equipment Effectiveness (OEE) and first-pass yield rates. A mature hairpin motor production line should consistently achieve a yield rate of over 98%. Request case studies or live run data to verify their claims.
3. Flexibility for Multi-Specification Models
The EV market evolves rapidly. Your production line must be flexible enough to handle different stator diameters, slot counts (e.g., 4-pole to 8-pole), and wire gauges (typically ranging from 0.8mm to 2.0mm in thickness). Evaluate how long it takes for the manufacturer’s line to perform a full changeover. Look for modular designs that allow for quick servo adjustments rather than extensive hardware overhauls.
4. Proprietary Core Technology
Be cautious of integrators who merely assemble off-the-shelf components. The most reliable hairpin motor automation equipment companies develop their own proprietary technologies for critical processes. For instance, HONEST Automation utilizes self-developed high-precision twisting mechanisms and AI-powered vision-guided laser welding systems to ensure zero-defect joint consistency.
5. Global Service & Commissioning Speed
A production line is only as good as its uptime. Evaluate the manufacturer’s ability to provide rapid commissioning, spare parts logistics, and remote diagnostics. Can they deploy engineers to your site within 24-48 hours if a critical fault occurs?
The Global Landscape: Who Are the Key Players?
If you are asking, “What are the top hairpin motor production line manufacturers?” It is essential to understand the global landscape. The market is dominated by a mix of legacy giants and emerging powerhouses:
European & Japanese Legacy Brands: Companies like Aumann and Marsilli have a long history in winding technology. They offer robust equipment and are well-established, but often come with premium pricing, longer lead times, and less flexibility for highly customized, small-batch EV startups.
Leading Chinese Brands: Over the past five years, Chinese automation firms have rapidly closed the technology gap, offering highly competitive turnkey solutions. Among them, HONEST Automation stands out for its cost-effective hairpin motor production lines, particularly excelling in high-speed Hairpin, X Pin, Mini Pin twisting and integrated laser welding technologies, delivering European-grade quality with superior delivery speed and ROI.
Common Pitfalls When Sourcing Hairpin Motor Assembly Lines
Even experienced procurement teams make mistakes when sourcing flat wire automation. Watch out for these common traps:
1. Overlooking the Integration Between Winding and Welding: Many buyers focus heavily on the winding speed but neglect the downstream welding process. Twisting must perfectly prepare the wire ends for welding; otherwise, even the best laser welder will produce defects.
2. Choosing Standalone Machines Over Synchronous Whole-Line Design: Buying individual machines from different vendors and trying to link them yourself often leads to buffer overflow, cycle time mismatches, and communication protocol clashes. Always opt for a whole-line synchronous design.
3. Underestimating the Complexity of After-Sales Support: A hairpin line contains thousands of servo motors and sensors. Ensure your supplier offers robust remote diagnostic tools (IoT platforms) to troubleshoot issues before they halt production.
4. Ignoring equipment compatibility and upgrades: Currently, it can only support this one product and cannot be compatible with several products or quickly and flexibly switch between models. This means that when subsequent product upgrades or similar new products need to be mass-produced, the equipment upgrade and modification will either be very costly and difficult or impossible, resulting in the need to purchase a new assembly line.
Transitioning to hairpin motor manufacturing is a strategic imperative for staying competitive in the EV sector, but it requires a substantial leap in automation complexity. Choosing the right hairpin motor production line manufacturer is not just a procurement decision; it is a partnership that will determine your product’s quality, yield, and time-to-market.
By focusing on turnkey capabilities, core proprietary technology, and proven yield rates, you can navigate the landscape of flat wire motor automation equipment suppliers with confidence.
To explore how HONEST Automation can optimize your hairpin motor manufacturing process with cutting-edge automation solutions, Contact Our Engineering Team Today for a customized line proposal.
Frequently Asked Questions (FAQ)
Q1: What is the typical lead time for a custom hairpin motor production line?
A1: Depending on the complexity and automation level, lead times generally range from 4 to 8 months. At HONEST Automation, our standardized modular approach allows us to compress delivery cycles to [e.g., 4 months], ensuring faster time-to-market for our clients.
Q2: Can a single hairpin line handle both I-Pin and X-Pin configurations?
A2: Yes. Advanced automation providers like HONEST Automation design modular lines that allow for quick changeovers between I-Pin and X-Pin manufacturing, protecting your capital investment against future technology shifts.
Q3: What is the expected yield rate for a mature hairpin motor assembly line?
A3: A high-quality, properly calibrated line should consistently achieve a first-pass yield rate of over 98%. Through our proprietary process control and vision inspection systems.
