As the demand for electric vehicles (EVs), automotive, and humanoid robots, the heart of these technologies—the motor coil—requires unprecedented levels of precision. But achieving high slot fill rates and zero-defect production isn’t just about having the right wire; it requires partnering with coil winding and coil manufacturing specialists.
In this comprehensive guide, we answer the most critical questions about coil manufacturing and explain how advanced automation is reshaping the industry.
Q1: What does a coil winding and manufacturing specialist do?
Answer:
A coil winding and manufacturing specialist designs, engineers, and builds the automated machinery and production lines required to manufacture electromagnetic coils. Unlike general machinery providers, these specialists focus exclusively on the nuances of wire tension, traverse accuracy, and insulation handling.
Specifically, a specialist like HONEST Automation provides:
① Custom Winding Solutions: Engineering machines for specific applications like BLDC stators, hairpin motors, or humanoid robots.
② Turnkey Line Integration: Connecting winding machines with subsequent processes like inserting, lacing, impregnation, assembly and testing.
③ Process Optimization: Enhancing slot fill rates and reducing cycle times to maximize overall equipment effectiveness (OEE).
Q2: What are the core technologies used in modern coil manufacturing?
Answer:
Modern coil manufacturing relies on a synergy of precision mechanical engineering and intelligent control software. According to industry automation standards, the core technologies include:
Needle Winding Technology:
Needle winding uses a hook-and-needle approach, where the winding head performs vertical lifting and oscillating movements inside the stator bore to achieve precise coil placement. Through servo-linked control, the system accurately regulates stator height and commutation angle during winding.
Flyer Rotor Winding Technology:
This technology uses single or dual flyer systems for high-precision winding. During the process, there are no lead or tail wire losses, enabling zero copper waste. Multiple winding modes allow compatibility with a wide range of product types.
Bobbin Winding Technology:
This is a multi-spindle synchronized winding method, typically using 8-axis or 12-axis systems. It is widely applied in relays, ignition coils, and stepper motors.

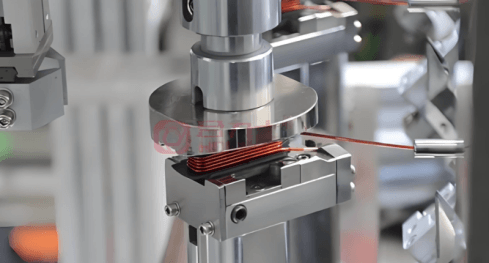

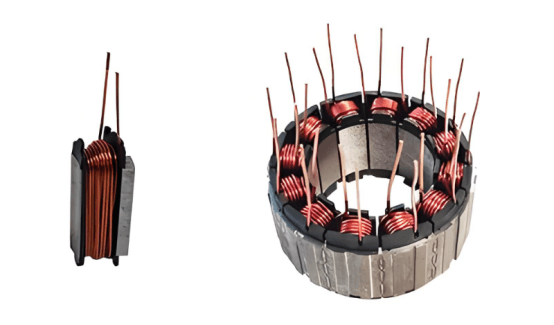

Segmented Stator Winding Technology:
Used in brushless DC motor applications, this method offers broad compatibility. It adopts a flat winding process and automatically completes winding, wire arrangement, insulation stripping, and cutting. After winding, the stator segments are assembled into a circular form and welded.
Q3: How does automation improve the coil winding process?
Answer:
Automation transforms coil winding from a labor-intensive, inconsistent process into a highly repeatable, data-driven operation. The impact of automation includes:
Precision & Consistency: Automated tension and pitch control ensure every coil meets strict electrical tolerances, critical for IE4/IE5 high-efficiency motors.
Drastic Cycle Time Reduction: Automated winding heads can operate at speeds unachievable by manual labor, significantly boosting throughput.
Minimized Material Waste: Intelligent tensioning and precise layering reduce copper wire scrap and avoid costly rework.
Q4: How to choose the right coil winding specialist for your production line?
Answer:
Selecting the right coil winding and manufacturing specialist is critical for your plant’s ROI. Evaluate potential partners based on these criteria:
Industry Experience: Do they have proven case studies in your specific sector (e.g., automotive EV, humanoid robots, home appliances, power tools)?
R&D and Customization Capability: Can they modify standard machines to accommodate unique stator geometries or new magnet wire grades?
Global Service Network: Can they provide rapid technical support and spare parts worldwide? Especially provide localized after-sales service in your country
End-of-Line Testing Expertise: Do they integrate hi-pot, surge, and resistance testing directly into the production line?
Why HONEST Automation? As leading coil winding and coil manufacturing specialists, HONEST Automation combines two decades of R&D with a global footprint. We don’t just build machines; we engineer comprehensive winding ecosystems—from loose wire to a perfectly formed, tested motor, ensuring our clients ≥98% yield rates.
The Future of Coil Manufacturing
The future of coil manufacturing points toward fully digitalized, unmanned production cells. As wire diameters get thinner and slot fill rates demand higher precision, the role of specialized automation will only become more vital. Partnering with the right coil winding and coil manufacturing specialists ensures your production lines are future-proofed for the next generation of electric mobility and smart automation.
Looking to upgrade your coil winding production line? Contact HONEST Automation today to consult with our engineering specialists and discover customized, high-efficiency automation solutions for your motor manufacturing needs.
