Dual shaft DC gear motors are widely used in automotive seat systems due to their compact structure, reliable performance, and ability to provide synchronized mechanical output. These motors are commonly applied in power seat adjustment mechanisms, seat recliner systems, and other automotive actuator applications that require precise movement and stable torque output.
With increasing demand for intelligent and comfortable vehicle interiors, automotive seat manufacturers require highly automated production solutions to achieve consistent quality, high production efficiency, and reliable mass production.
HONEST Automation provides customized dual shaft DC gear motor assembly line solutions designed for automotive motor manufacturers, covering motor assembly, gearbox integration, performance testing, and intelligent production management.
1. What Is a Dual Shaft DC Gear Motor?
A dual shaft DC gear motor is a permanent magnet DC motor integrated with a reduction gearbox and two output shafts. Compared with conventional DC gear motors, the dual output shaft structure enables synchronized mechanical transmission and improved motion stability.
A typical dual shaft DC gear motor consists of:
Motor housing
Stator and rotor components
Permanent magnets
Carbon brushes and end cap
Gearbox assembly
Dual output shafts
Bearings and transmission components
Performance testing components
Due to its high torque output and compact design, this motor type is widely used in automotive applications where precise adjustment and reliable operation are required.
2. Applications of Dual Shaft DC Gear Motors in Automotive Seat Systems
Automotive seat systems are one of the major application fields for dual shaft DC gear motors.
Power Seat Motors
Dual shaft DC gear motors are commonly used in electric seat adjustment systems, including:
Seat forward and backward adjustment
Seat height adjustment
Seat tilt adjustment
Seat cushion movement
The motor needs to provide stable torque output and long service life to meet automotive durability requirements.
Seat Recliner Motors
Seat recliner mechanisms require accurate and synchronized movement. Dual output shaft designs help achieve smooth backrest adjustment while maintaining mechanical balance.
Key requirements include:
Low noise operation
Stable torque performance
High positioning accuracy
Long-term reliability
Automotive Actuator Systems
Besides seat applications, dual shaft DC gear motors can also be used in:
Sunroof systems
Window lift systems
Tailgate mechanisms
Other automotive adjustment systems
3. Challenges in Dual Shaft DC Gear Motor Manufacturing
Although dual shaft DC gear motors have a mature structure, automotive mass production requires strict control of assembly accuracy and product consistency.
3.1. Precision Assembly Requirements
The assembly process involves multiple precision operations:
Rotor and stator assembly
Shaft pressing
Gearbox integration
Bearing installation
End cap assembly
Small deviations during assembly may affect motor noise, torque output, and service life.
3.2. Consistent Performance Testing
Automotive customers require every motor to meet strict performance standards.
Typical inspection items include:
Voltage and current testing
Speed testing
Torque testing
Rotation direction testing
Noise testing
Load performance testing
3.3. High Volume Production Requirements
Automotive seat motor suppliers usually require large-scale production with:
Stable cycle time
High equipment availability
Low defect rate
Full production traceability
Manual assembly methods are difficult to meet these requirements, making automated production lines essential.

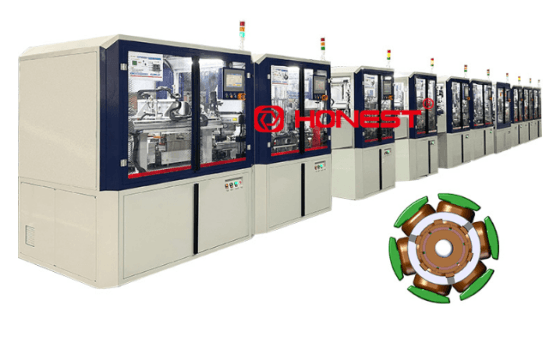

4. Dual Shaft DC Gear Motor Assembly Line Solution
HONEST Automation develops customized dual shaft DC gear motor assembly lines for automotive motor manufacturers, integrating automation, precision control, and intelligent testing technologies.
The production line can include:
Automatic Component Loading
The system automatically handles feeding and positioning of:
Motor housings
Rotors
Stators
Gear components
Shafts
End caps
Automatic loading improves production efficiency and reduces manual handling errors.
Motor Assembly Process
The automated assembly process covers:
Rotor insertion
Stator assembly
Brush and end cap assembly
Bearing pressing
Shaft installation
Servo-controlled assembly ensures high precision and consistent product quality.
Gearbox Assembly and Integration
The gearbox assembly process includes:
Gear installation
Lubrication
Gearbox housing assembly
Output shaft installation
Precision control ensures smooth transmission and reliable motor operation.
Automated Performance Testing
The production line integrates end-of-line testing systems to verify motor performance.
Testing functions include:
Torque testing
Speed testing
Current measurement
Noise detection
Functional verification
Only qualified products are released for shipment.
Intelligent Traceability System
For automotive applications, the assembly line can integrate:
Barcode scanning
Production data recording
Quality tracking
MES connectivity
Each motor can be traced throughout the entire manufacturing process.
5. Why Choose HONEST for Dual Shaft DC Gear Motor Assembly Solutions?
Automotive Motor Manufacturing Experience
HONEST Automation has extensive experience developing automated production solutions for automotive motors, including:
Seat motors
Seat recliner motors
Window lift motors
Sunroof motors
ABS motors
DC brushed motors
Customized Turnkey Production Solutions
Different automotive motor manufacturers have different product structures and production requirements.
HONEST provides customized solutions based on:
Production capacity
Assembly processes
Quality requirements
Supporting High-Volume Mass Production
From individual assembly stations to complete production lines, HONEST helps customers achieve stable and efficient automotive motor manufacturing.
6. Future Development Trends of Dual Shaft DC Gear Motor Manufacturing
With the development of intelligent vehicles and advanced automotive interiors, demand for high-performance seat adjustment systems continues to increase.
Future trends include:
More compact actuator designs
Higher precision motion control
Lower noise operation
Integration of intelligent control systems
Increased automation in motor manufacturing
Manufacturers need flexible and reliable automation solutions to support continuous product upgrades.
A reliable dual shaft DC gear motor assembly line is essential for automotive seat motor manufacturers seeking higher production efficiency, consistent quality, and scalable manufacturing capability.
HONEST Automation provides complete automation solutions for dual shaft DC gear motors, supporting automotive suppliers from assembly process development to high-volume production.
Looking for an automated dual shaft DC gear motor production solution? Contact HONEST Automation for customized motor manufacturing solutions.
