Frameless torque motors have become a key component in modern humanoid robots. Their compact design, high torque density, and direct drive capability make them ideal for robotic joints that require smooth, accurate, and responsive motion.
As the robotics industry continues to expand, manufacturers need efficient production systems that can deliver high-quality motors while supporting large-scale manufacturing.
However, frameless torque motor production is more challenging than conventional motor manufacturing. These motors require extremely high assembly precision, accurate alignment, and strict quality control throughout the production process. Even small manufacturing deviations can affect torque output, positioning accuracy, and overall motor performance.
To overcome these challenges, manufacturers are adopting automated production technologies that integrate winding, assembly, inspection, and testing into one intelligent manufacturing system. Automation improves production efficiency while ensuring every motor meets demanding quality standards.
This guide explains the common production challenges and the automation solutions that help manufacturers achieve stable and scalable frameless torque motor manufacturing.
Why Frameless Torque Motors Are Important

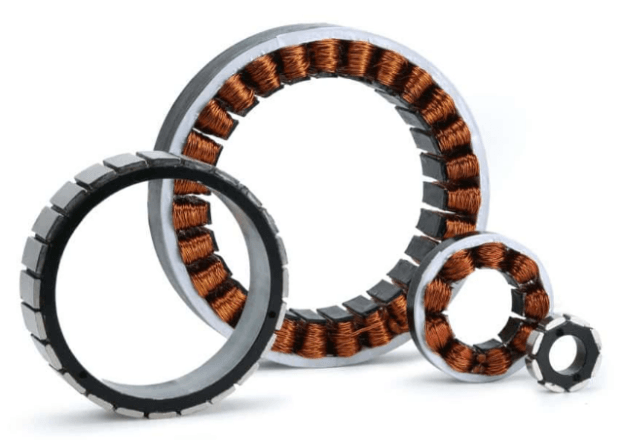

Unlike traditional motors, frameless torque motors are designed without an external housing. They consist mainly of a stator and rotor that are integrated directly into the customer's mechanical structure. This design reduces mechanical transmission components while improving motion accuracy and efficiency.
A robot joint torque motor is commonly used in humanoid robots because it delivers high torque at low speeds without requiring gear reduction in many applications. This improves responsiveness, reduces maintenance requirements, and increases overall system performance.
As demand for advanced robots grows, manufacturers need production systems capable of producing these precision motors consistently and efficiently.
Key Challenges in Frameless Torque Motor Production
Producing frameless torque motors requires greater precision than many standard electric motors. Every production stage must be carefully controlled to maintain product consistency.
Common Manufacturing Challenges
Manufacturers often face challenges such as:
· High precision assembly requirements
· Accurate rotor and stator alignment
· Consistent winding quality
· Tight dimensional tolerances
· Complex quality inspection
· Stable production efficiency
· Complete product traceability
Without advanced automation, these challenges can increase production costs and reduce product quality.
Precision Stator Manufacturing
The stator is one of the most critical components of every frameless torque motor. Its manufacturing quality directly affects torque performance, efficiency, and operating stability.
Modern production systems automate stator preparation to improve precision and reduce manufacturing variation.
Typical Stator Manufacturing Operations
The stator production process generally includes:
· Core preparation
· Insulation insertion
· Coil winding
· Wire termination
· Resin application
· Dimensional inspection
Automatic inspection systems verify each operation before the stator moves to the next manufacturing stage.
Direct Drive Motor Manufacturing
Modern direct drive motor manufacturing focuses on eliminating unnecessary transmission components while improving motion accuracy. This requires extremely accurate assembly and alignment throughout production.
Automated equipment controls assembly force, positioning accuracy, and component alignment to ensure consistent motor quality.
Machine vision systems and intelligent sensors continuously monitor production parameters to reduce assembly variation and improve manufacturing efficiency.
Torque Motor Assembly Line

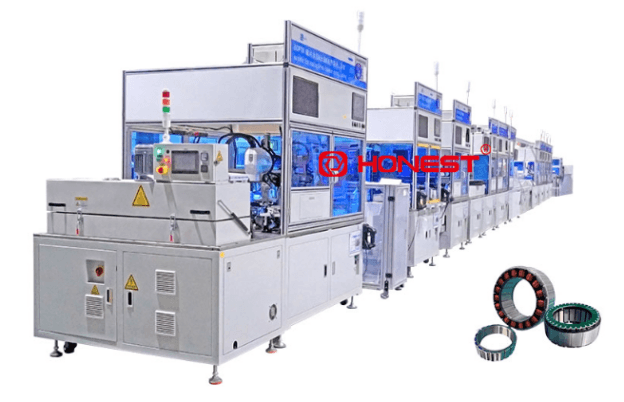

A modern torque motor assembly line integrates multiple production processes into one continuous workflow. Instead of relying on manual handling, automated transfer systems move products efficiently between workstations.
Typical Assembly Processes
A complete assembly line may include:
· Rotor installation
· Stator assembly
· Bearing fitting
· Precision alignment
· Fastener tightening
· Laser marking
· Functional inspection
· Data collection
An integrated production line reduces manual operations while improving production speed, product consistency, and manufacturing efficiency.
End-of-Line Testing and Performance Verification
Every frameless torque motor should undergo comprehensive testing before leaving the production line. End-of-line testing confirms that each motor meets design specifications and delivers stable performance under operating conditions. This stage is essential for maintaining product quality and reducing the risk of failures in robotic applications.
Modern testing systems automatically evaluate motor performance while recording production data for complete product traceability.
Typical Testing Processes
A complete testing system generally includes:
· Torque testing
· Speed testing
· Position accuracy testing
· Noise testing
· Vibration analysis
· Electrical performance testing
· Insulation resistance testing
· Functional testing
Automated testing ensures that only qualified motors move to packaging and shipment. It also helps manufacturers reduce warranty costs and improve customer confidence.
Quality Control Throughout Production
Quality control should be integrated into every manufacturing stage rather than being limited to the final inspection. A comprehensive quality management system helps manufacturers identify production issues early, reducing waste and improving overall efficiency.
Modern production lines use machine vision systems, precision sensors, and intelligent monitoring equipment to verify component positioning, assembly accuracy, and dimensional tolerances in real time.
Continuous inspection allows manufacturers to maintain consistent product quality while improving production stability and reducing manual inspection work.
Smart Manufacturing and Product Traceability
Digital manufacturing has become an important part of modern motor production. Smart factories collect production data from every workstation, allowing manufacturers to monitor quality and optimize production performance.
Assembly parameters, inspection results, testing records, equipment status, and product serial numbers are automatically stored throughout the manufacturing process. This complete traceability enables manufacturers to quickly identify quality issues and continuously improve production processes.
Digital production management also supports predictive maintenance, equipment monitoring, and production scheduling, helping manufacturers improve factory efficiency.
Automation Solutions for Frameless Torque Motor Manufacturing
Automation is the most effective way to overcome the challenges of frameless torque motor production. By integrating winding, assembly, alignment, inspection, and testing into one intelligent workflow, manufacturers can achieve stable production while maintaining high product quality.
HONEST Automation designs customized automation equipment for frameless torque motor manufacturers, including winding, assembly, alignment, and testing processes.
HONEST Automation is a global supplier of turnkey motor and robotic component manufacturing automation solutions, providing automated production equipment for BLDC motors, coreless motors, frameless torque motors, robot actuators, and precision robotic components.
Customized automation solutions improve production efficiency, reduce manual errors, and provide the flexibility needed to support future manufacturing expansion.
Benefits of an Integrated Torque Motor Assembly Line
A fully integrated torque motor assembly line offers significant advantages over traditional manufacturing methods. Instead of operating separate machines independently, automated systems connect every production stage into one continuous workflow.
Key Benefits Include
Manufacturers can achieve:
· Higher production efficiency
· Improved product consistency
· Reduced labor dependency
· Faster production cycles
· Lower manufacturing costs
· Better product traceability
· Easier production expansion
· Stable long-term manufacturing performance
An integrated production line helps manufacturers meet increasing market demand while maintaining the precision required for advanced robotic applications.
Final Thoughts
Successful frameless torque motor production depends on precision manufacturing, intelligent automation, and comprehensive quality control. Every production stage must work together to ensure high motor performance, stable quality, and consistent manufacturing results.
By adopting advanced direct drive motor manufacturing technologies and an integrated torque motor assembly line, manufacturers can improve product quality, increase production efficiency, and meet the growing demand for high-performance robot joint torque motor applications.
